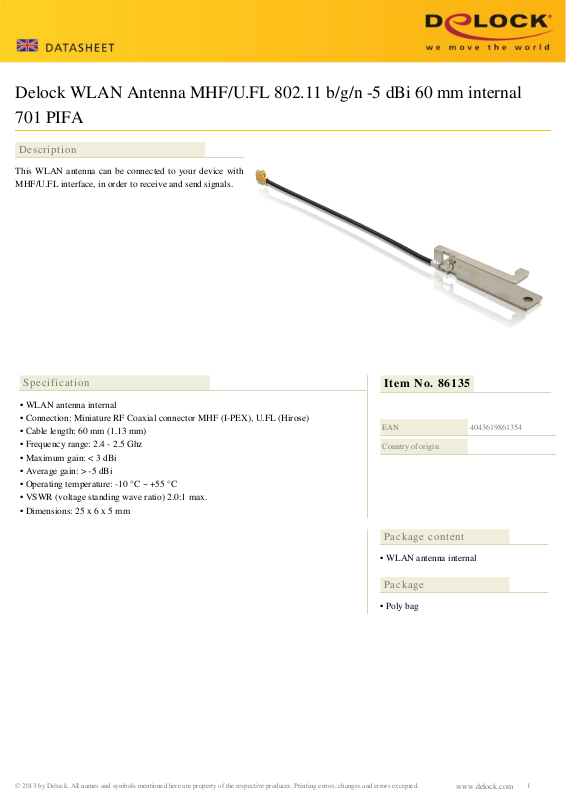

DeLOCK 86135 User Manual

Delock WLAN Antenna MHF/U.FL 802.11 b/g/n -5 dBi 60 mm internal
701 PIFA

Description

This WLAN antenna can be connected to your device with
MHF/U.FL interface, in order to receive and send signals.

Specification

• WLAN antenna internal

• Connection: Miniature RF Coaxial connector MHF (I-PEX), U.FL (Hirose)

• Cable length: 60 mm (1.13 mm)

• Frequency range: 2.4 - 2.5 Ghz

• Maximum gain: < 3 dBi

• Average gain: > -5 dBi

• Operating temperature: -10 °C ~ +55 °C

• VSWR (voltage standing wave ratio) 2.0:1 max.

• Dimensions: 25 x 6 x 5 mm

Item No. 86135

EAN

Country of origin

4043619861354

Package content

• WLAN antenna internal

Package

• Poly bag
