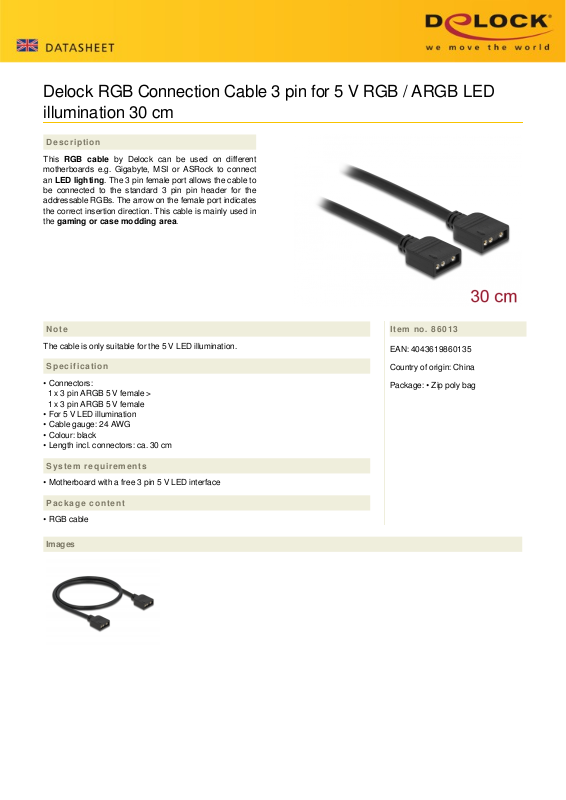

DELOCK 86013 Datasheet

Page 1

Delock RGB Connection Cable 3 pin for 5 V RGB / ARGB LED illumination 30 cm

Description

This RGB cable by Delock can be used on different motherboards e.g. Gigabyte, MSI or ASRock to connect an LED lighting. The 3 pin female port allows the cable to be connected to the standard 3 pin pin header for the addressable RGBs. The arrow on the female port indicates the correct insertion direction. This cable is mainly used in the gaming or case modding area.

Note

The cable is only suitable for the 5 V LED illumination.

Specification

• Connectors: 1 x 3 pin ARGB 5 V female > 1 x 3 pin ARGB 5 V female

• For 5 V LED illumination

• Cable gauge: 24 AWG

• Colour: black

• Length incl. connectors: ca. 30 cm

Item no. 86013

EAN: 4043619860135

Country of origin: China

Package: • Zip poly bag

System requirements

• Motherboard with a free 3 pin 5 V LED interface

Package content

• RGB cable

Images

Page 2

Interface

Connector 1: 1 x 3 pin ARGB 5 V female Connector 2: 1 x 3 pin ARGB 5 V female

Physical characteristics

Cable length incl. connector: 30 cm Conductor gauge: 24 AWG Colour: black
