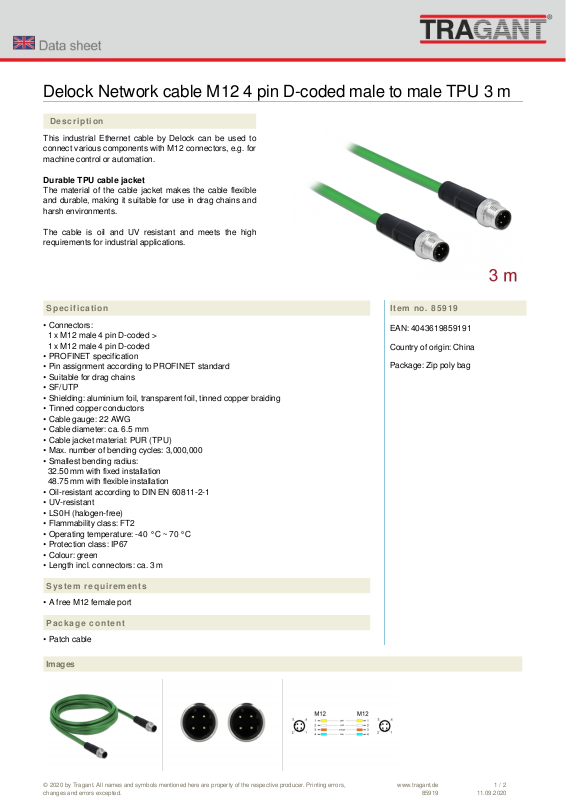

Delock Network cable M12 4 pin D-coded male to male TPU 3 m
Description
This industrial Ethernet cable by Delock can be used to
connect various components with M12 connectors, e.g. for
machine control or automation.
Durable TPU cable jacket
The material of the cable jacket makes the cable flexible
and durable, making it suitable for use in drag chains and
harsh environments.
The cable is oil and UV resistant and meets the high
requirements for industrial applications.
Specification
• Connectors:
1 x M12 male 4 pin D-coded >
1 x M12 male 4 pin D-coded
• PROFINET specification
• Pin assignment according to PROFINET standard
• Suitable for drag chains
• SF/UTP
• Shielding: aluminium foil, transparent foil, tinned copper braiding
• Tinned copper conductors
• Cable gauge: 22 AWG
• Cable diameter: ca. 6.5 mm
• Cable jacket material: PUR (TPU)
• Max. number of bending cycles: 3,000,000
• Smallest bending radius:
32.50 mm with fixed installation
48.75 mm with flexible installation
• Oil-resistant according to DIN EN 60811-2-1
• UV-resistant
• LS0H (halogen-free)
• Flammability class: FT2
• Operating temperature: -40 °C ~ 70 °C
• Protection class: IP67
• Colour: green
• Length incl. connectors: ca. 3 m
Item no. 85919
EAN: 4043619859191
Country of origin: China
Package: Zip poly bag
System requirements
• A free M12 female port
Package content
• Patch cable
Images
© 2020 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
85919
1 / 2
11.09.2020
Page 2
General
Specification: standard
PROFINET
Protection category: standard
IP67
Interface
Connector 1: standard
1 x M12 Stecker
Connector 2: standard
1 x M12 plug
Technical characteristics
Operating temperature: standard
-40 °C ~ 70 °C
Physical characteristics
Cable diameter: standard
6.5 mm
Conductor material: standard
Copper tinned
Conductor gauge: standard
22 AWG
Shielding: standard
triple
SF/UTP
Length: standard
3 m
Smallest bending radius: standard
32.5 mm
Colour: standard
green
