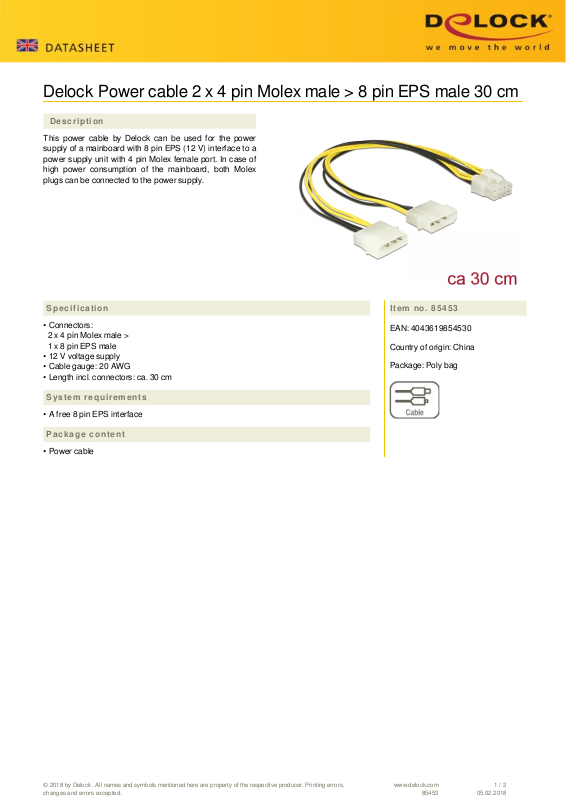

Delock Power cable 2 x 4 pin Molex male > 8 pin EPS male 30 cm
Description
This power cable by Delock can be used for the power
supply of a mainboard with 8 pin EPS (12 V) interface to a
power supply unit with 4 pin Molex female port. In case of
high power consumption of the mainboard, both Molex
plugs can be connected to the power supply.
Specification
• Connectors:
2 x 4 pin Molex male >
1 x 8 pin EPS male
• 12 V voltage supply
• Cable gauge: 20 AWG
• Length incl. connectors: ca. 30 cm
Item no. 85453
EAN: 4043619854530
Country of origin: China
Package: Poly bag
System requirements
• A free 8 pin EPS interface
Package content
• Power cable
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
85453
1 / 2
05.02.2018
Page 2
Technical characteristics
Voltage: 12 V
Physical characteristics
Conductor gauge: 20 AWG
