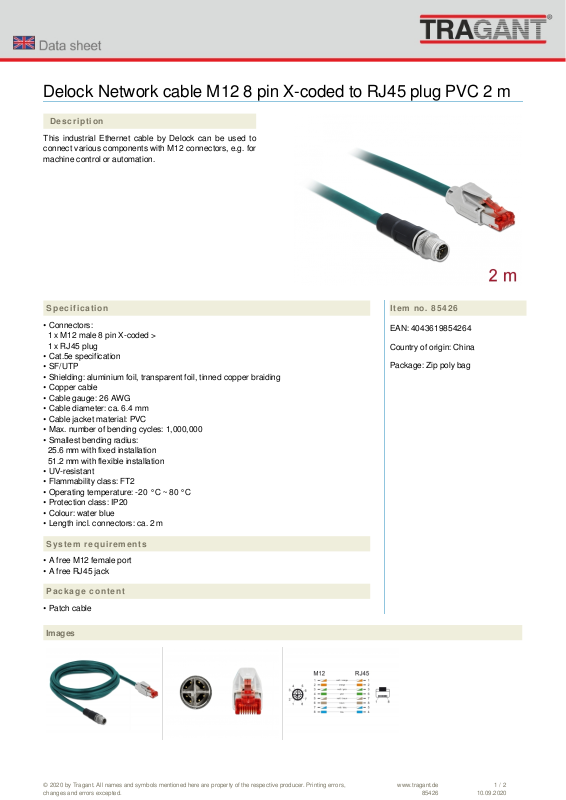

Delock Network cable M12 8 pin X-coded to RJ45 plug PVC 2 m
Description
This industrial Ethernet cable by Delock can be used to
connect various components with M12 connectors, e.g. for
machine control or automation.
Specification
• Connectors:
1 x M12 male 8 pin X-coded >
1 x RJ45 plug
• Cat.5e specification
• SF/UTP
• Shielding: aluminium foil, transparent foil, tinned copper braiding
• Copper cable
• Cable gauge: 26 AWG
• Cable diameter: ca. 6.4 mm
• Cable jacket material: PVC
• Max. number of bending cycles: 1,000,000
• Smallest bending radius:
25.6 mm with fixed installation
51.2 mm with flexible installation
• UV-resistant
• Flammability class: FT2
• Operating temperature: -20 °C ~ 80 °C
• Protection class: IP20
• Colour: water blue
• Length incl. connectors: ca. 2 m
Item no. 85426
EAN: 4043619854264
Country of origin: China
Package: Zip poly bag
System requirements
• A free M12 female port
• A free RJ45 jack
Package content
• Patch cable
Images
© 2020 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
85426
1 / 2
10.09.2020
Page 2
General
Specification: standard
Cat. 5e
Protection category: standard
IP20
Interface
Connector 1: standard
1 x M12 Stecker
Connector 2: standard
1 x RJ45 plug
Technical characteristics
Operating temperature: standard
-20 °C ~ 80 °C
Physical characteristics
Cable diameter: standard
6.4 mm
Conductor material: standard
copper
Conductor gauge: standard
26 AWG
Shielding: standard
SF/UTP
Length: standard
2 m
Smallest bending radius: standard
25.6 mm
Colour: standard
water blue
