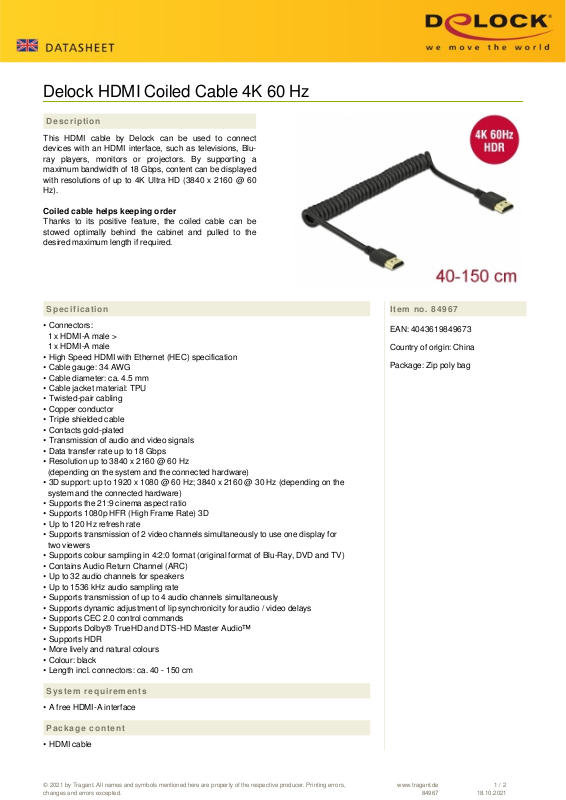

Delock HDMI Coiled Cable 4K 60 Hz
Description
This HDMI cable by Delock can be used to connect
devices with an HDMI interface, such as televisions, Bluray players, monitors or projectors. By supporting a
maximum bandwidth of 18 Gbps, content can be displayed
with resolutions of up to 4K Ultra HD (3840 x 2160 @ 60
Hz).
Coiled cable helps keeping order
Thanks to its positive feature, the coiled cable can be
stowed optimally behind the cabinet and pulled to the
desired maximum length if required.
Specification
• Connectors:
1 x HDMI-A male >
1 x HDMI-A male
• High Speed HDMI with Ethernet (HEC) specification
• Cable gauge: 34 AWG
• Cable diameter: ca. 4.5 mm
• Cable jacket material: TPU
• Twisted-pair cabling
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 18 Gbps
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• 3D support: up to 1920 x 1080 @ 60 Hz; 3840 x 2160 @ 30 Hz (depending on the
system and the connected hardware)
• Supports the 21:9 cinema aspect ratio
• Supports 1080p HFR (High Frame Rate) 3D
• Up to 120 Hz refresh rate
• Supports transmission of 2 video channels simultaneously to use one display for
two viewers
• Supports colour sampling in 4:2:0 format (original format of Blu-Ray, DVD and TV)
• Contains Audio Return Channel (ARC)
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports transmission of up to 4 audio channels simultaneously
• Supports dynamic adjustment of lip synchronicity for audio / video delays
• Supports CEC 2.0 control commands
• Supports Dolby® TrueHD and DTS-HD Master Audio™
• Supports HDR
• More lively and natural colours
• Colour: black
• Length incl. connectors: ca. 40 - 150 cm
Item no. 84967
EAN: 4043619849673
Country of origin: China
Package: Zip poly bag
System requirements
• A free HDMI-A interface
Package content
• HDMI cable
© 2021 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
84967
1 / 2
18.10.2021
Page 2
General
Specification: DTS Audio
High Speed HDMI with Ethernet
Dolby Digital
HDR
Interface
Connector 1: 1 x HDMI-A male
Connector 2: 1 x HDMI-A male
Technical characteristics
Data transfer rate: up to 18 Gb/s
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Cable category: Coiled Cable
Cable diameter: 4.5 mm
Connector finishing: gold-plated
Pin finishing: gold-plated
Conductor material: copper
Conductor gauge: 34 AWG
Shielding: triple
Length: 40 - 150 cm
Colour: black
