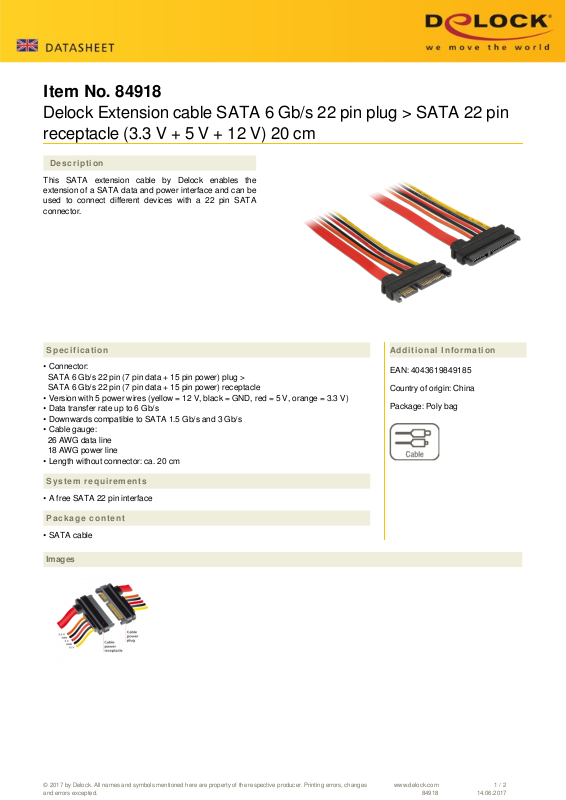

Page 1
Item No. 84918
Delock Extension cable SATA 6 Gb/s 22 pin plug > SATA 22 pin
receptacle (3.3 V + 5 V + 12 V) 20 cm
Description
This SATA extension cable by Delock enables the
extension of a SATA data and power interface and can be
used to connect different devices with a 22 pin SATA
connector.
Specification
• Connector:
SATA 6 Gb/s 22 pin (7 pin data + 15 pin power) plug >
SATA 6 Gb/s 22 pin (7 pin data + 15 pin power) receptacle
• Version with 5 power wires (yellow = 12 V, black = GND, red = 5 V, orange = 3.3 V)
• Data transfer rate up to 6 Gb/s
• Downwards compatible to SATA 1.5 Gb/s and 3 Gb/s
• Cable gauge:
26 AWG data line
18 AWG power line
• Length without connector: ca. 20 cm
Additional Information
EAN: 4043619849185
Country of origin: China
Package: Poly bag
System requirements
• A free SATA 22 pin interface
Package content
• SATA cable
Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
84918
1 / 2
14.06.2017
Page 2
General
Specification: SATA 6 Gb/s
Interface
connector 1: 1 x SATA 6 Gb/s 22 pin plug
connector 2: 1 x SATA 6 Gb/s 22 pin receptacle
Technical characteristics
Data transfer rate: 6 Gb/s
Voltage: 3.3 V
5 V
12 V
Physical characteristics
Conductor gauge: 26 AWG data line
18 AWG power line
Length: 20 cm
