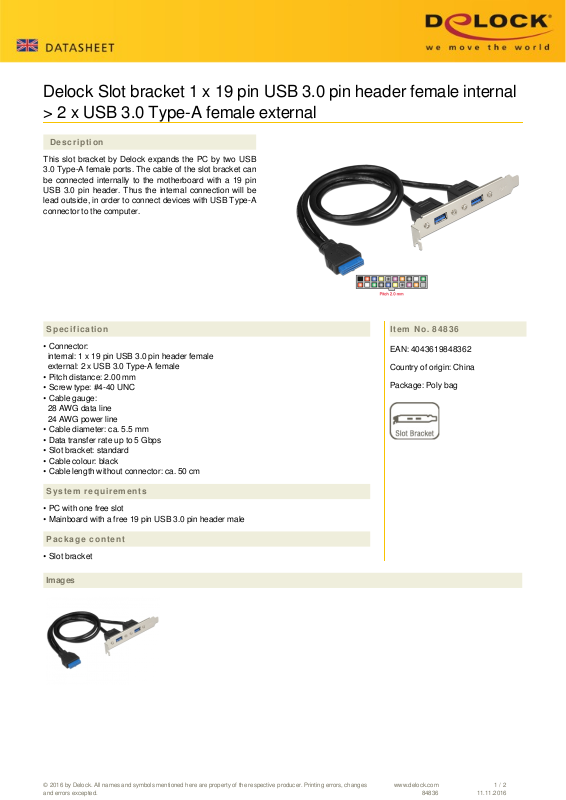

Delock Slot bracket 1 x 19 pin USB 3.0 pin header female internal
> 2 x USB 3.0 Type-A female external
Description
This slot bracket by Delock expands the PC by two USB
3.0 Type-A female ports. The cable of the slot bracket can
be connected internally to the motherboard with a 19 pin
USB 3.0 pin header. Thus the internal connection will be
lead outside, in order to connect devices with USB Type-A
connector to the computer.
Specification
• Connector:
internal: 1 x 19 pin USB 3.0 pin header female
external: 2 x USB 3.0 Type-A female
• Pitch distance: 2.00 mm
• Screw type: #4-40 UNC
• Cable gauge:
28 AWG data line
24 AWG power line
• Cable diameter: ca. 5.5 mm
• Data transfer rate up to 5 Gbps
• Slot bracket: standard
• Cable colour: black
• Cable length without connector: ca. 50 cm
Item No. 84836
EAN: 4043619848362
Country of origin: China
Package: Poly bag
System requirements
• PC with one free slot
• Mainboard with a free 19 pin USB 3.0 pin header male
Package content
• Slot bracket
Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
84836
1 / 2
11.11.2016
Page 2
Interface
External: 2 x USB 3.0 Type-A female
Internal: 1 x 19 pin USB 3.0 pin header female
Technical characteristics
Data transfer rate: 5 Gbps
Physical characteristics
Pitch distance: 2.00 mm
Cable diameter: 5.5 mm
Cable colour: black
Cable length: 50 cm
Conductor gauge: 28 AWG data line
24 AWG power line
Slot bracket: standard
Screw type: #4-40 UNC
