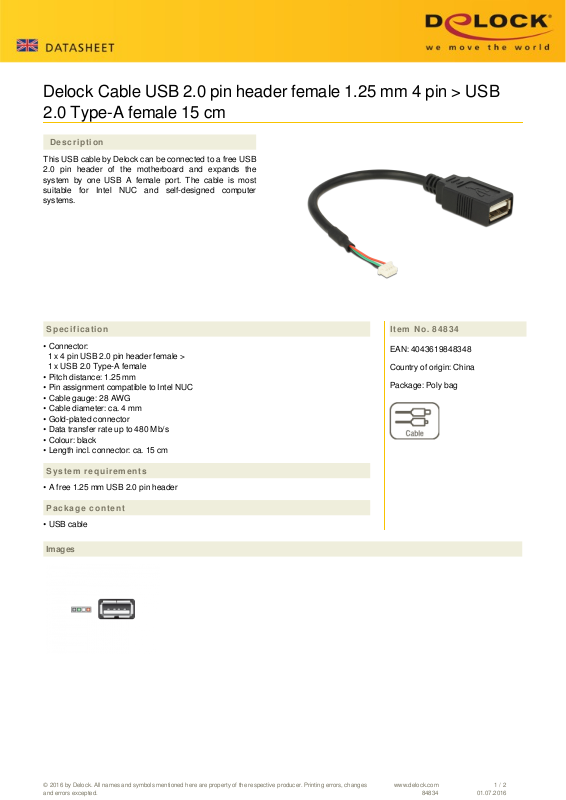

Page 1
Delock Cable USB 2.0 pin header female 1.25 mm 4 pin > USB
2.0 Type-A female 15 cm
Description
This USB cable by Delock can be connected to a free USB
2.0 pin header of the motherboard and expands the
system by one USB A female port. The cable is most
suitable for Intel NUC and self-designed computer
systems.
Specification
• Connector:
1 x 4 pin USB 2.0 pin header female >
1 x USB 2.0 Type-A female
• Pitch distance: 1.25 mm
• Pin assignment compatible to Intel NUC
• Cable gauge: 28 AWG
• Cable diameter: ca. 4 mm
• Gold-plated connector
• Data transfer rate up to 480 Mb/s
• Colour: black
• Length incl. connector: ca. 15 cm
Item No. 84834
EAN: 4043619848348
Country of origin: China
Package: Poly bag
System requirements
• A free 1.25 mm USB 2.0 pin header
Package content
• USB cable
Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
84834
1 / 2
01.07.2016
Page 2
Interface
Connection 1: 1 x 4 pin USB 2.0 pin header female
Connection 2: 1 x USB 2.0 Type-A female
Technical characteristics
Data transfer rate: 480 Mbps
Physical characteristics
Pitch distance: 1.25 mm
Cable diameter: 4 mm
Conductor gauge: 28 AWG
Colour: black
Length: 15 cm
