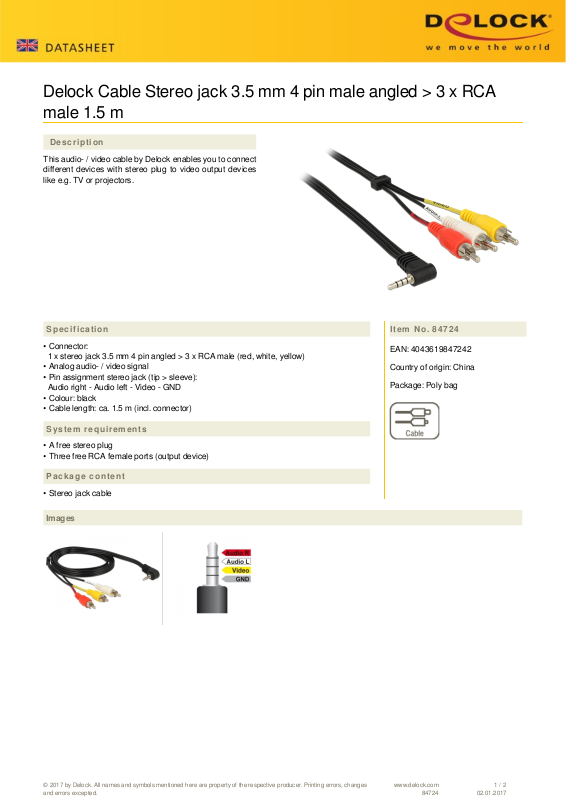

Delock Cable Stereo jack 3.5 mm 4 pin male angled > 3 x RCA
male 1.5 m
Description
This audio- / video cable by Delock enables you to connect
different devices with stereo plug to video output devices
like e.g. TV or projectors.
Specification
• Connector:
1 x stereo jack 3.5 mm 4 pin angled > 3 x RCA male (red, white, yellow)
• Analog audio- / video signal
• Pin assignment stereo jack (tip > sleeve):
Audio right - Audio left - Video - GND
• Colour: black
• Cable length: ca. 1.5 m (incl. connector)
Item No. 84724
EAN: 4043619847242
Country of origin: China
Package: Poly bag
System requirements
• A free stereo plug
• Three free RCA female ports (output device)
Package content
• Stereo jack cable
Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
84724
1 / 2
02.01.2017
Page 2
Interface
connector 1: 1 x 3.5 mm 3 pin audio stereo jack male
connector 2: 3 x Cinch Stecker
Physical characteristics
Cable colour: black
Length: 1.5 m
