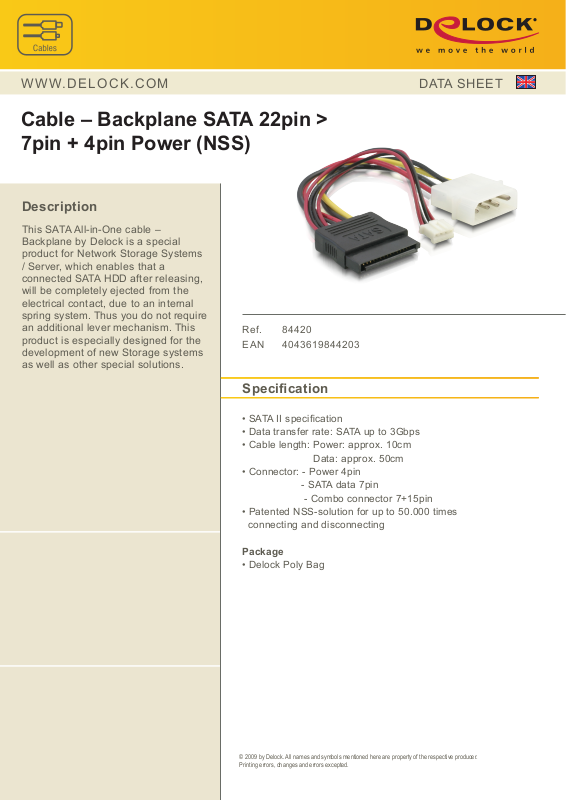

DeLOCK 84420 User Manual

WWW. D E L O C K . C O M

Cable – Backplane SATA 22pin > 7pin + 4pin Power (NSS)

Description

This SATA All-in-One cable – Backplane by Delock is a special product for Network Storage Systems / Server, which enables that a connected SATA HDD after releasing, will be completely ejected from the electrical contact, due to an internal spring system. Thus you do not require an additional lever mechanism. This product is especially designed for the development of new Storage systems as well as other special solutions.

Ref.

EAN

84420

4043619844203

DATA SHEET

Specication

• SATA II specication

• Data transfer rate: SATA up to 3Gbps

• Cable length: Power: approx. 10cm Data: approx. 50cm

• Connector: - Power 4pin

- SATA data 7pin

- Combo connector 7+15pin

• Patented NSS-solution for up to 50.000 times connecting and disconnecting

Package

• Delock Poly Bag
