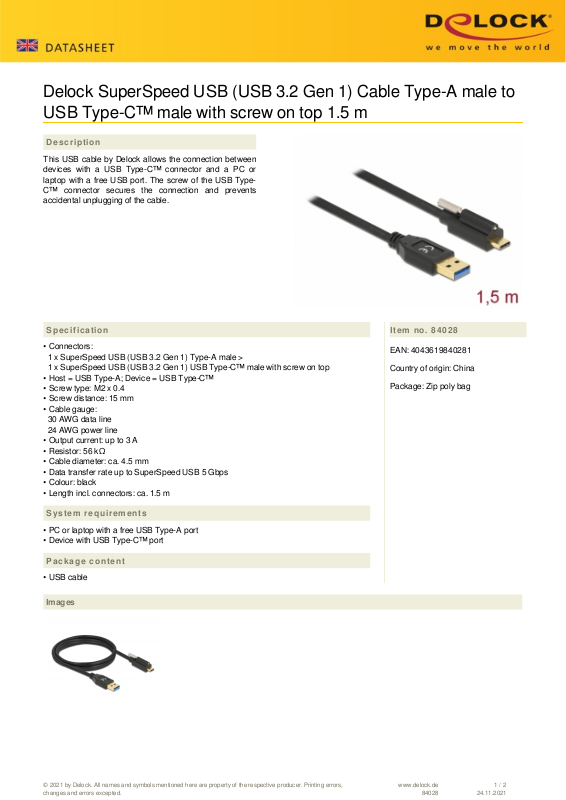

Page 1
Delock SuperSpeed USB (USB 3.2 Gen 1) Cable Type-A male to
USB Type-C™ male with screw on top 1.5 m
Description
This USB cable by Delock allows the connection between
devices with a USB Type-C™ connector and a PC or
laptop with a free USB port. The screw of the USB TypeC™ connector secures the connection and prevents
accidental unplugging of the cable.
Specification
• Connectors:
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A male >
1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ male with screw on top
• Host = USB Type-A; Device = USB Type-C™
• Screw type: M2 x 0.4
• Screw distance: 15 mm
• Cable gauge:
30 AWG data line
24 AWG power line
• Output current: up to 3 A
• Resistor: 56 kΩ
• Cable diameter: ca. 4.5 mm
• Data transfer rate up to SuperSpeed USB 5 Gbps
• Colour: black
• Length incl. connectors: ca. 1.5 m
Item no. 84028
EAN: 4043619840281
Country of origin: China
Package: Zip poly bag
System requirements
• PC or laptop with a free USB Type-A port
• Device with USB Type-C™ port
Package content
• USB cable
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
84028
1 / 2
24.11.2021
Page 2
General
Specification: SuperSpeed USB 10 Gbps (USB 3.1 Gen 2)
Interface
Connector 1: 1 x USB 3.2 Gen 2 type-A male
Connector 2: 1 x USB 3.2 Gen 2 Type-C™ male
Technical characteristics
Data transfer rate: USB 3.1 Gen 2 up to 10 Gb/s
Maximum current: 3 A
Resistor: 56 kΩ
Physical characteristics
Cable diameter: 4.5 mm
Pin finishing: gold-plated
Conductor gauge: 30 AWG data line
24 AWG power line
Screw type: M2 x 0.4
Length: 1.5 m
Colour: black
Powered by TCPDF (www.tcpdf.org)
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
84028
2 / 2
24.11.2021
