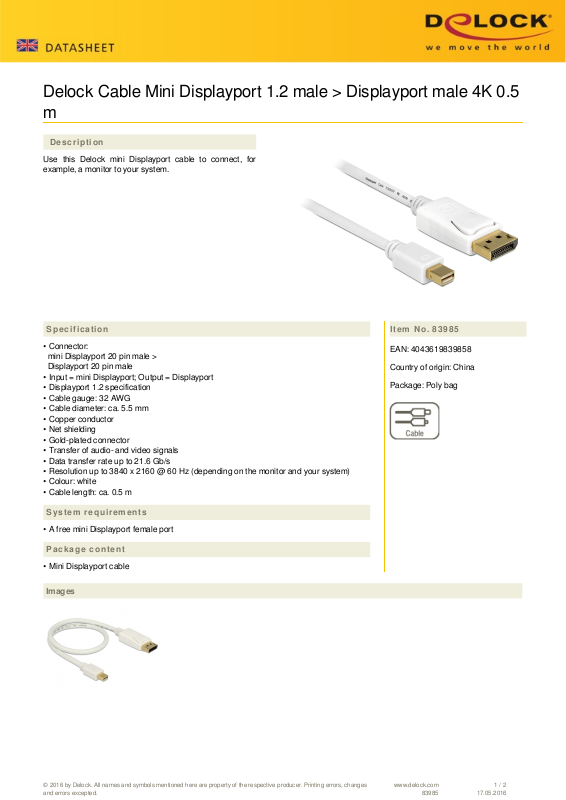

Page 1
Delock Cable Mini Displayport 1.2 male > Displayport male 4K 0.5
m
Description
Use this Delock mini Displayport cable to connect, for
example, a monitor to your system.
Specification
• Connector:
mini Displayport 20 pin male >
Displayport 20 pin male
• Input = mini Displayport; Output = Displayport
• Displayport 1.2 specification
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Copper conductor
• Net shielding
• Gold-plated connector
• Transfer of audio- and video signals
• Data transfer rate up to 21.6 Gb/s
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the monitor and your system)
• Colour: white
• Cable length: ca. 0.5 m
Item No. 83985
EAN: 4043619839858
Country of origin: China
Package: Poly bag
System requirements
• A free mini Displayport female port
Package content
• Mini Displayport cable
Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
83985
1 / 2
17.05.2016
Page 2
General
Specification: Displayport 1.2
Interface
Connection 1: 1 x mini Displayport 20 pin male
Connection 2: 1 x Displayport 20 pin male
Technical characteristics
Data transfer rate: 21,6 Gb/s
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Cable diameter: 5.5 mm
Connector finishing: nickel-plated
Pin finishing: gold-plated
Conductor material: copper
Conductor gauge: 32 AWG
Shielding: triple
Colour: white
Length: 50 cm
Powered by TCPDF (www.tcpdf.org)
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
83985
2 / 2
17.05.2016
