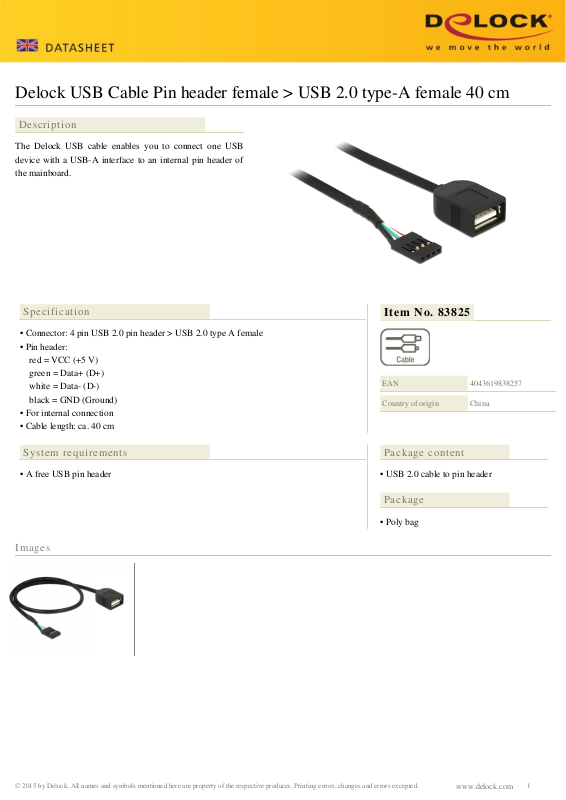

Delock USB Cable Pin header female > USB 2.0 type-A female 40 cm
Description
The Delock USB cable enables you to connect one USB
device with a USB-A interface to an internal pin header of
the mainboard.
Specification
• Connector: 4 pin USB 2.0 pin header > USB 2.0 type A female
• Pin header:
red = VCC (+5 V)
green = Data+ (D+)
white = Data- (D-)
black = GND (Ground)
• For internal connection
• Cable length: ca. 40 cm
Item No. 83825
EAN
Country of origin
4043619838257
China
System requirements
• A free USB pin header
Images
Package content
• USB 2.0 cable to pin header
Package
• Poly bag
