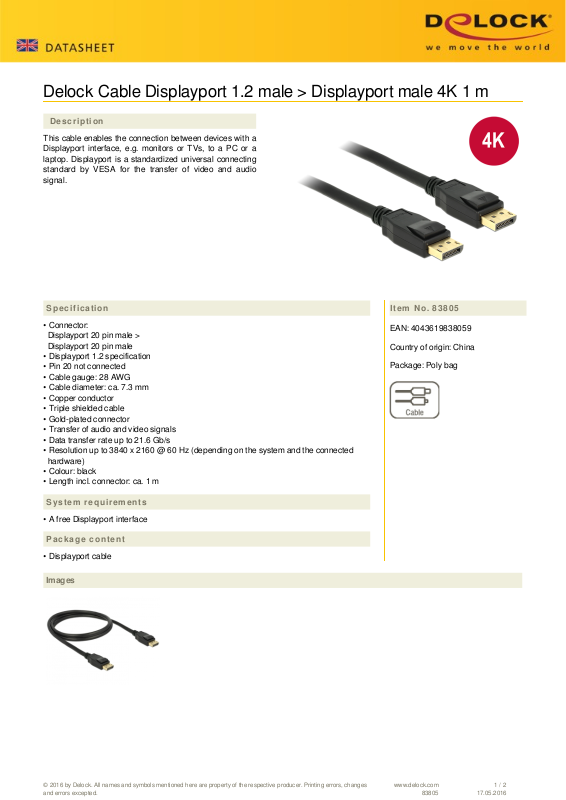

Page 1
Delock Cable Displayport 1.2 male > Displayport male 4K 1 m
Description
This cable enables the connection between devices with a
Displayport interface, e.g. monitors or TVs, to a PC or a
laptop. Displayport is a standardized universal connecting
standard by VESA for the transfer of video and audio
signal.
Specification
• Connector:
Displayport 20 pin male >
Displayport 20 pin male
• Displayport 1.2 specification
• Pin 20 not connected
• Cable gauge: 28 AWG
• Cable diameter: ca. 7.3 mm
• Copper conductor
• Triple shielded cable
• Gold-plated connector
• Transfer of audio and video signals
• Data transfer rate up to 21.6 Gb/s
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
hardware)
• Colour: black
• Length incl. connector: ca. 1 m
Item No. 83805
EAN: 4043619838059
Country of origin: China
Package: Poly bag
System requirements
• A free Displayport interface
Package content
• Displayport cable
Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
83805
1 / 2
17.05.2016
Page 2
General
Specification: Displayport 1.2a
Interface
Connection 1: 1 x Displayport 20 pin male
Connection 2: 1 x Displayport 20 pin male
Technical characteristics
Data transfer rate: 21,6 Gb/s
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Housing: PVC
Cable diameter: 7.3 mm
Connector finishing: nickel-plated
Pin finishing: gold-plated
Conductor material: copper
Conductor gauge: 28 AWG
Shielding: triple
Colour: black
Length: 1 m
Powered by TCPDF (www.tcpdf.org)
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
83805
2 / 2
17.05.2016
