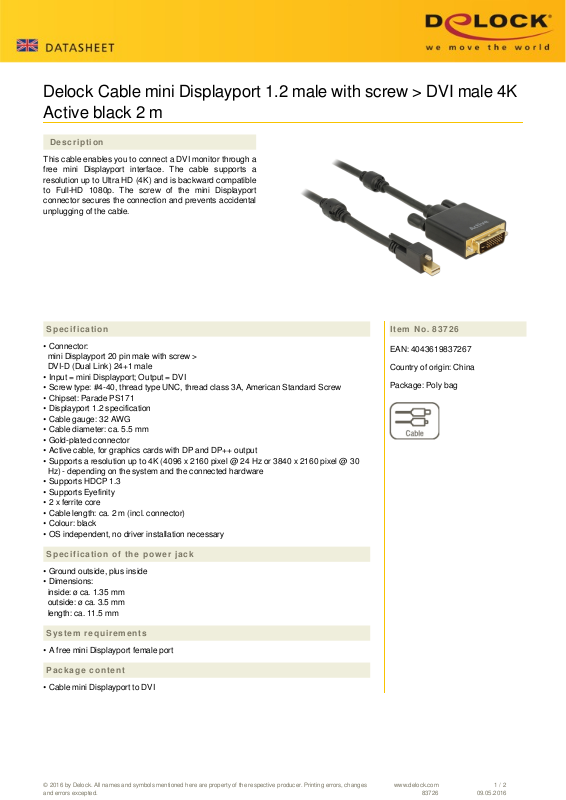

Delock Cable mini Displayport 1.2 male with screw > DVI male 4K
Active black 2 m
Description
This cable enables you to connect a DVI monitor through a
free mini Displayport interface. The cable supports a
resolution up to Ultra HD (4K) and is backward compatible
to Full-HD 1080p. The screw of the mini Displayport
connector secures the connection and prevents accidental
unplugging of the cable.
Specification
• Connector:
mini Displayport 20 pin male with screw >
DVI-D (Dual Link) 24+1 male
• Input = mini Displayport; Output = DVI
• Screw type: #4-40, thread type UNC, thread class 3A, American Standard Screw
• Chipset: Parade PS171
• Displayport 1.2 specification
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Gold-plated connector
• Active cable, for graphics cards with DP and DP++ output
• Supports a resolution up to 4K (4096 x 2160 pixel @ 24 Hz or 3840 x 2160 pixel @ 30
Hz) - depending on the system and the connected hardware
• Supports HDCP 1.3
• Supports Eyefinity
• 2 x ferrite core
• Cable length: ca. 2 m (incl. connector)
• Colour: black
• OS independent, no driver installation necessary
Item No. 83726
EAN: 4043619837267
Country of origin: China
Package: Poly bag
Specification of the power jack
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 11.5 mm
System requirements
• A free mini Displayport female port
Package content
• Cable mini Displayport to DVI
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
83726
1 / 2
09.05.2016
Page 2

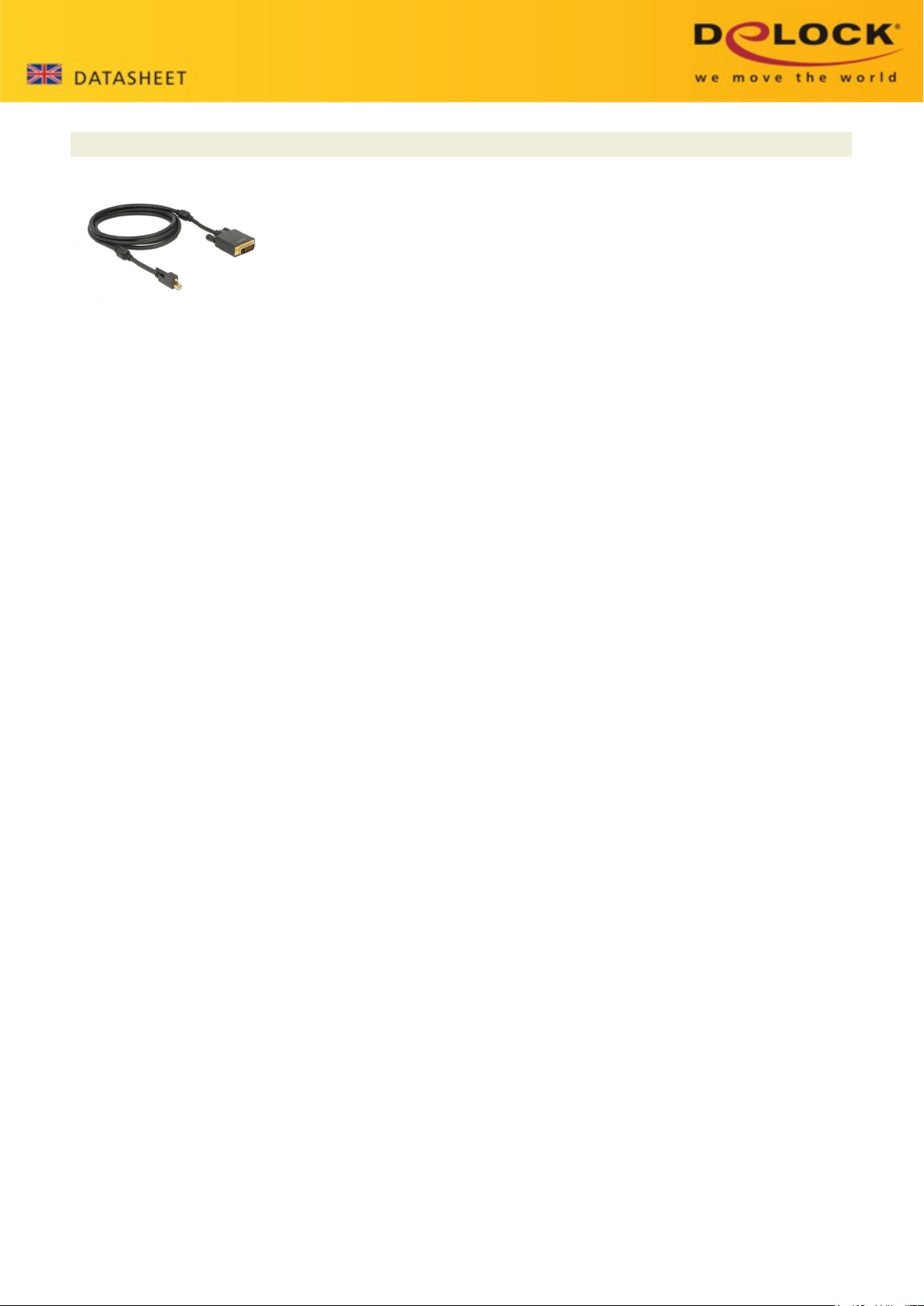

Images
