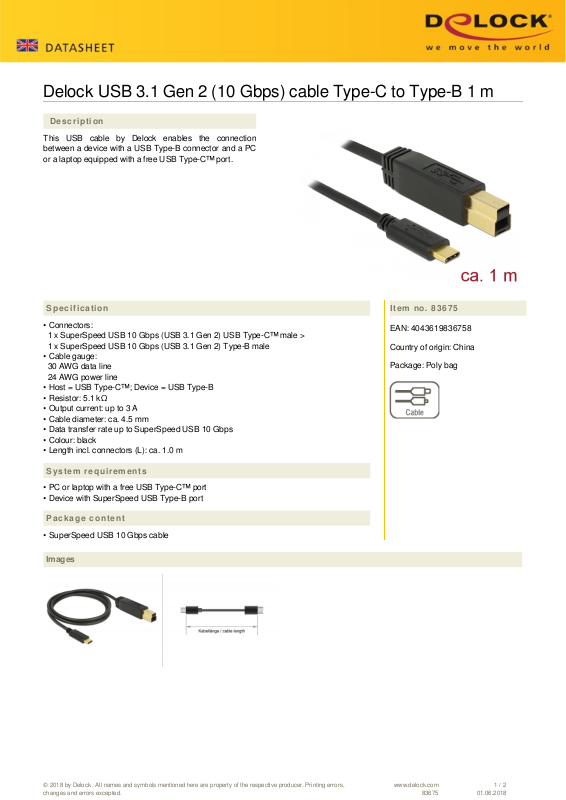

Page 1
Delock USB 3.1 Gen 2 (10 Gbps) cable Type-C to Type-B 1 m
Description
This USB cable by Delock enables the connection
between a device with a USB Type-B connector and a PC
or a laptop equipped with a free USB Type-C™ port.
Specification
• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ male >
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-B male
• Cable gauge:
30 AWG data line
24 AWG power line
• Host = USB Type-C™; Device = USB Type-B
• Resistor: 5.1 kΩ
• Output current: up to 3 A
• Cable diameter: ca. 4.5 mm
• Data transfer rate up to SuperSpeed USB 10 Gbps
• Colour: black
• Length incl. connectors (L): ca. 1.0 m
Item no. 83675
EAN: 4043619836758
Country of origin: China
Package: Poly bag
System requirements
• PC or laptop with a free USB Type-C™ port
• Device with SuperSpeed USB Type-B port
Package content
• SuperSpeed USB 10 Gbps cable
Images
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
83675
1 / 2
01.06.2018
Page 2
General
Specification: SuperSpeed USB 10 Gbps (USB 3.1 Gen 2)
Interface
Connector 1: 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ male
Connector 2: 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-B male
Technical characteristics
Data transfer rate: 10 Gbps
Maximum current: 3 A
Physical characteristics
Cable diameter: 4.5 mm
Pin finishing: gold-plated
Conductor gauge: 30 AWG data line
24 AWG power line
Length: 1 m
Colour: black
Powered by TCPDF (www.tcpdf.org)
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
83675
2 / 2
01.06.2018
