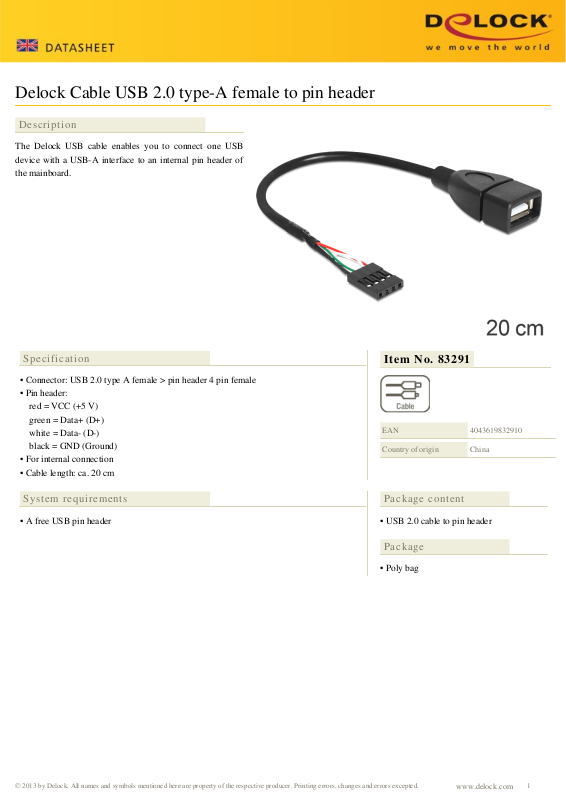

DeLOCK 83291 User Manual

Delock Cable USB 2.0 type-A female to pin header

Description

The Delock USB cable enables you to connect one USB
device with a USB-A interface to an internal pin header of
the mainboard.

Specification

• Connector: USB 2.0 type A female > pin header 4 pin female

• Pin header:
red = VCC (+5 V)
green = Data+ (D+)
white = Data- (D-)
black = GND (Ground)

• For internal connection

• Cable length: ca. 20 cm

Item No. 83291

EAN

Country of origin

4043619832910

China

System requirements

• A free USB pin header

Package content

• USB 2.0 cable to pin header

Package

• Poly bag

© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
