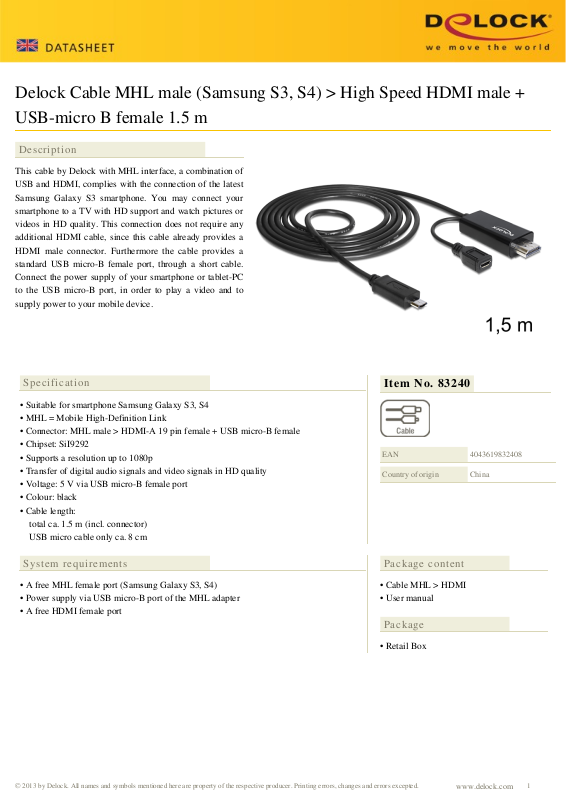

DeLOCK 83240 User Manual

Delock Cable MHL male (Samsung S3, S4) > High Speed HDMI male +
USB-micro B female 1.5 m

Description

This cable by Delock with MHL interface, a combination of
USB and HDMI, complies with the connection of the latest
Samsung Galaxy S3 smartphone. You may connect your
smartphone to a TV with HD support and watch pictures or
videos in HD quality. This connection does not require any
additional HDMI cable, since this cable already provides a
HDMI male connector. Furthermore the cable provides a
standard USB micro-B female port, through a short cable.
Connect the power supply of your smartphone or tablet-PC
to the USB micro-B port, in order to play a video and to
supply power to your mobile device.

Specification

• Suitable for smartphone Samsung Galaxy S3, S4

• MHL = Mobile High-Definition Link

• Connector: MHL male > HDMI-A 19 pin female + USB micro-B female

• Chipset: SiI9292

• Supports a resolution up to 1080p

• Transfer of digital audio signals and video signals in HD quality

• Voltage: 5 V via USB micro-B female port

• Colour: black

• Cable length:
total ca. 1.5 m (incl. connector)
USB micro cable only ca. 8 cm

Item No. 83240

EAN

Country of origin

4043619832408

China

System requirements

• A free MHL female port (Samsung Galaxy S3, S4)

• Power supply via USB micro-B port of the MHL adapter

• A free HDMI female port

Package content

• Cable MHL > HDMI

• User manual

Package

• Retail Box
