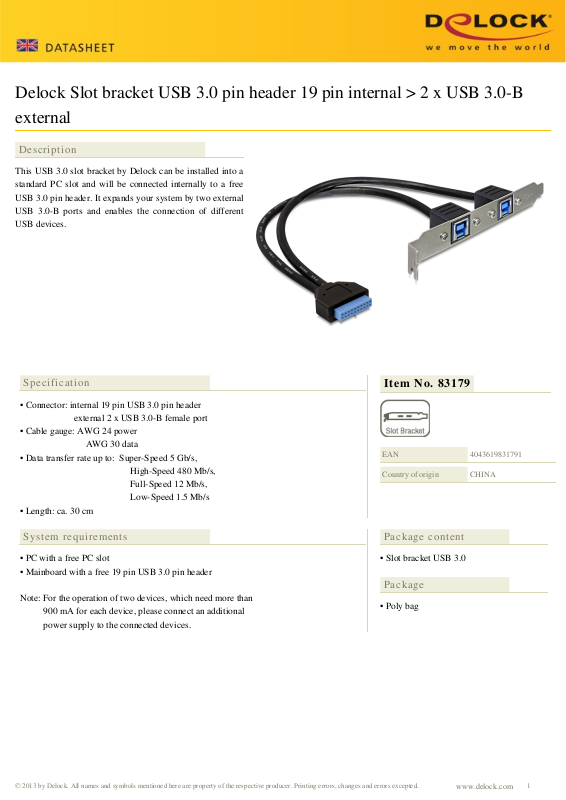

DeLOCK 83179 User Manual

Delock Slot bracket USB 3.0 pin header 19 pin internal > 2 x USB 3.0-B
external

Description

This USB 3.0 slot bracket by Delock can be installed into a
standard PC slot and will be connected internally to a free
USB 3.0 pin header. It expands your system by two external
USB 3.0-B ports and enables the connection of different
USB devices.

Specification

• Connector: internal 19 pin USB 3.0 pin header
external 2 x USB 3.0-B female port

• Cable gauge: AWG 24 power
AWG 30 data

• Data transfer rate up to: Super-Speed 5 Gb/s,
High-Speed 480 Mb/s,
Full-Speed 12 Mb/s,
Low-Speed 1.5 Mb/s

• Length: ca. 30 cm

Item No. 83179

EAN

Country of origin

4043619831791

CHINA

System requirements

• PC with a free PC slot

• Mainboard with a free 19 pin USB 3.0 pin header

Package content

• Slot bracket USB 3.0

Package

Note: For the operation of two devices, which need more than
900 mA for each device, please connect an additional

• Poly bag

power supply to the connected devices.

© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
