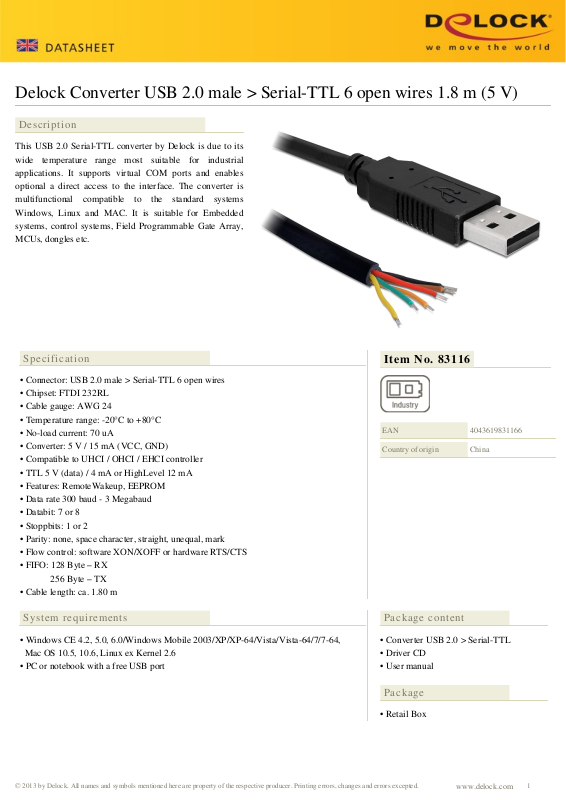

DeLOCK 83116 User Manual
Delock Converter USB 2.0 male > Serial-TTL 6 open wires 1.8 m (5 V)
Description
This USB 2.0 Serial-TTL converter by Delock is due to its
wide temperature range most suitable for industrial
applications. It supports virtual COM ports and enables
optional a direct access to the interface. The converter is
multifunctional compatible to the standard systems
Windows, Linux and MAC. It is suitable for Embedded
systems, control systems, Field Programmable Gate Array,
MCUs, dongles etc.
Specification
• Connector: USB 2.0 male > Serial-TTL 6 open wires
• Chipset: FTDI 232RL
• Cable gauge: AWG 24
• Temperature range: -20°C to +80°C
• No-load current: 70 uA
• Converter: 5 V / 15 mA (VCC, GND)
• Compatible to UHCI / OHCI / EHCI controller
• TTL 5 V (data) / 4 mA or HighLevel 12 mA
• Features: RemoteWakeup, EEPROM
• Data rate 300 baud - 3 Megabaud
• Databit: 7 or 8
• Stoppbits: 1 or 2
• Parity: none, space character, straight, unequal, mark
• Flow control: software XON/XOFF or hardware RTS/CTS
• FIFO: 128 Byte – RX
256 Byte – TX
• Cable length: ca. 1.80 m
Item No. 83116
EAN
Country of origin
4043619831166
China
System requirements
• Windows CE 4.2, 5.0, 6.0/Windows Mobile 2003/XP/XP-64/Vista/Vista-64/7/7-64,
Mac OS 10.5, 10.6, Linux ex Kernel 2.6
• PC or notebook with a free USB port
Package content
• Converter USB 2.0 > Serial-TTL
• Driver CD
• User manual
Package
• Retail Box
