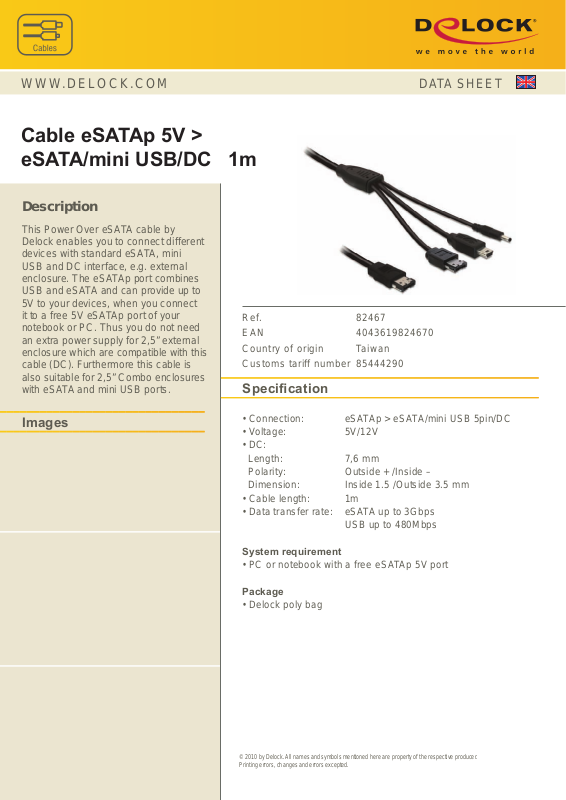

DeLOCK 82467 User Manual
WWW.DELOCK.COM
Cable eSATAp 5V >
eSATA/mini USB/DC 1m
Description
This Power Over eSATA cable by
Delock enables you to connect different
devices with standard eSATA, mini
USB and DC interface, e.g. external
enclosure. The eSATAp port combines
USB and eSATA and can provide up to
5V to your devices, when you connect
it to a free 5V eSATAp port of your
notebook or PC. Thus you do not need
an extra power supply for 2,5” external
enclosure which are compatible with this
cable (DC). Furthermore this cable is
also suitable for 2,5” Combo enclosures
with eSATA and mini USB ports.
Ref.
EAN
Country of origin
Customs tariff number
Specication
DATA SHEET
82467
4043619824670
Taiwan
85444290
Images
• Connection: eSATAp > eSATA/mini USB 5pin/DC
• Voltage: 5V/12V
• DC:
Length: 7,6 mm
Polarity: Outside + /Inside –
Dimension: Inside 1.5 /Outside 3.5 mm
• Cable length: 1m
• Data transfer rate: eSATA up to 3Gbps
USB up to 480Mbps
System requirement
• PC or notebook with a free eSATAp 5V port
Package
• Delock poly bag
© 2010 by Delock. All names and symbols mentioned here are property of the respective producer.
Printing errors, changes and errors excepted.
