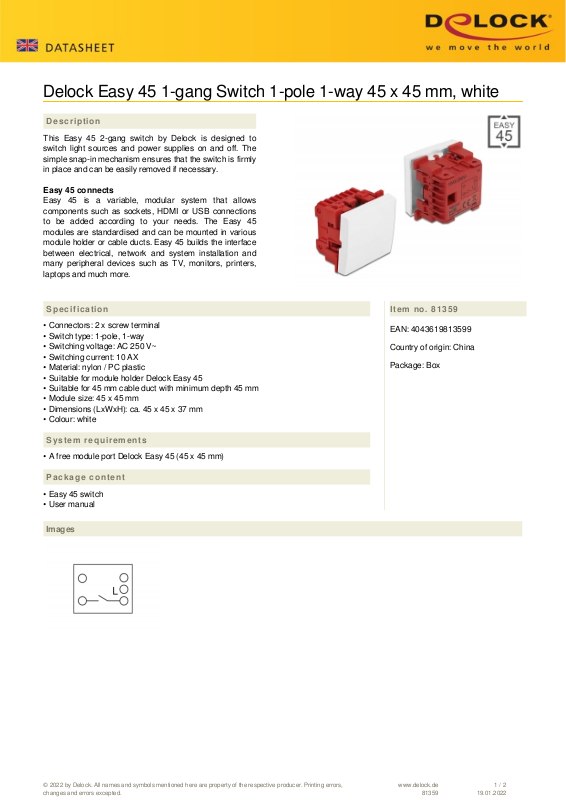

Delock Easy 45 1-gang Switch 1-pole 1-way 45 x 45 mm, white
Description
This Easy 45 2-gang switch by Delock is designed to
switch light sources and power supplies on and off. The
simple snap-in mechanism ensures that the switch is firmly
in place and can be easily removed if necessary.
Easy 45 connects
Easy 45 is a variable, modular system that allows
components such as sockets, HDMI or USB connections
to be added according to your needs. The Easy 45
modules are standardised and can be mounted in various
module holder or cable ducts. Easy 45 builds the interface
between electrical, network and system installation and
many peripheral devices such as TV, monitors, printers,
laptops and much more.
Specification
• Connectors: 2 x screw terminal
• Switch type: 1-pole, 1-way
• Switching voltage: AC 250 V~
• Switching current: 10 AX
• Material: nylon / PC plastic
• Suitable for module holder Delock Easy 45
• Suitable for 45 mm cable duct with minimum depth 45 mm
• Module size: 45 x 45 mm
• Dimensions (LxWxH): ca. 45 x 45 x 37 mm
• Colour: white
Item no. 81359
EAN: 4043619813599
Country of origin: China
Package: Box
System requirements
• A free module port Delock Easy 45 (45 x 45 mm)
Package content
• Easy 45 switch
• User manual
Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
81359
1 / 2
19.01.2022
Page 2
Interface
Connector 1: 1 x 3 pin terminal block screw terminal
Physical characteristics
Length: 45 mm
Width: 45 mm
Height: 37 mm
Colour: RAL 9003 Weiß
