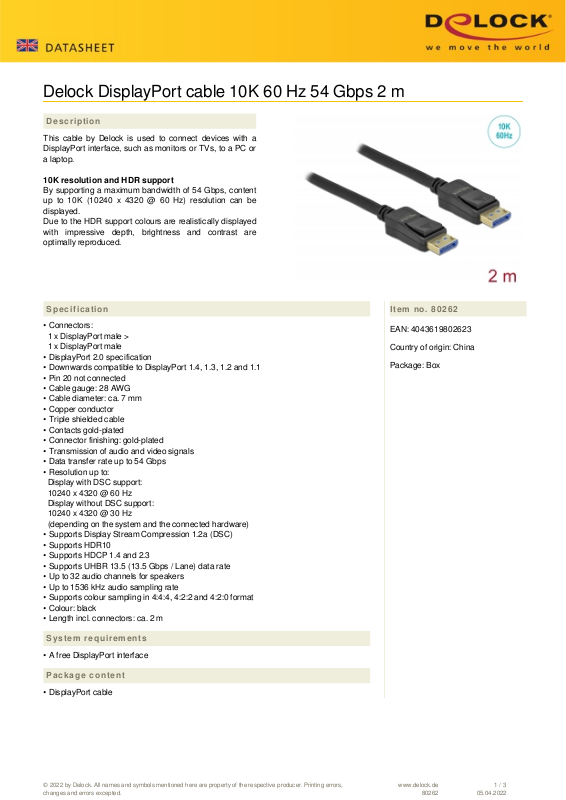

Delock DisplayPort cable 10K 60 Hz 54 Gbps 2 m
Description
This cable by Delock is used to connect devices with a
DisplayPort interface, such as monitors or TVs, to a PC or
a laptop.
10K resolution and HDR support
By supporting a maximum bandwidth of 54 Gbps, content
up to 10K (10240 x 4320 @ 60 Hz) resolution can be
displayed.
Due to the HDR support colours are realistically displayed
with impressive depth, brightness and contrast are
optimally reproduced.
Specification
• Connectors:
1 x DisplayPort male >
1 x DisplayPort male
• DisplayPort 2.0 specification
• Downwards compatible to DisplayPort 1.4, 1.3, 1.2 and 1.1
• Pin 20 not connected
• Cable gauge: 28 AWG
• Cable diameter: ca. 7 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Connector finishing: gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 54 Gbps
• Resolution up to:
Display with DSC support:
10240 x 4320 @ 60 Hz
Display without DSC support:
10240 x 4320 @ 30 Hz
(depending on the system and the connected hardware)
• Supports Display Stream Compression 1.2a (DSC)
• Supports HDR10
• Supports HDCP 1.4 and 2.3
• Supports UHBR 13.5 (13.5 Gbps / Lane) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
• Colour: black
• Length incl. connectors: ca. 2 m
Item no. 80262
EAN: 4043619802623
Country of origin: China
Package: Box
System requirements
• A free DisplayPort interface
Package content
• DisplayPort cable
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
80262
1 / 3
05.04.2022
Page 2

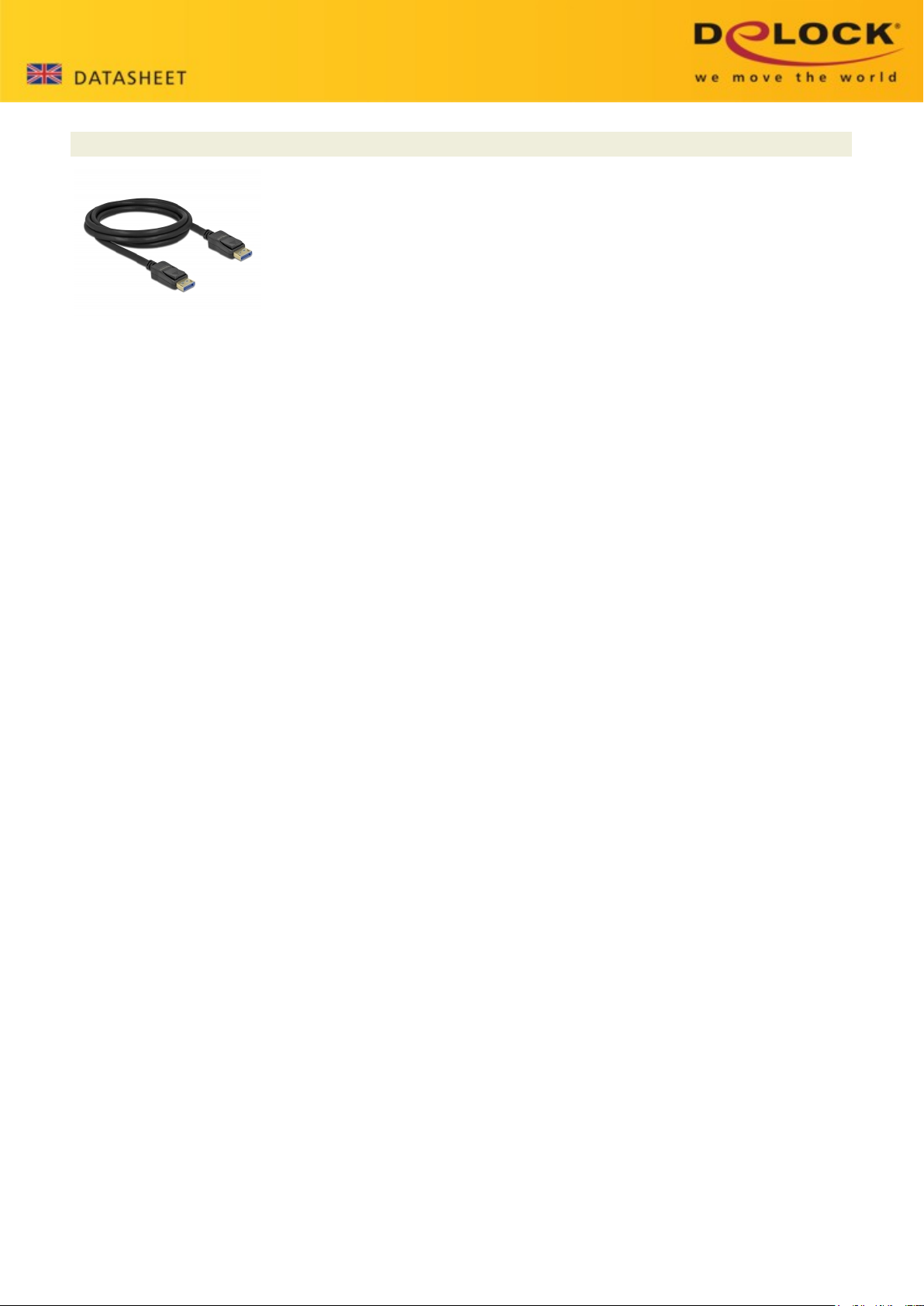

Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
80262
2 / 3
05.04.2022
Page 3
General
Specification: HDCP 1.4
HDR10
HDCP 2.3
Interface
Connector 1: 1 x DisplayPort male
Connector 2: 1 x DisplayPort male
Technical characteristics
Data transfer rate: up to 54 Gbps
Maximum screen resolution: 10240 x 4320 @ 60 Hz
Physical characteristics
Cable diameter: 7 mm
Connector finishing: gold-plated
Pin finishing: gold-plated
Conductor material: copper
Conductor gauge: 28 AWG
Shielding: triple
Length: 2 m
Colour: black
