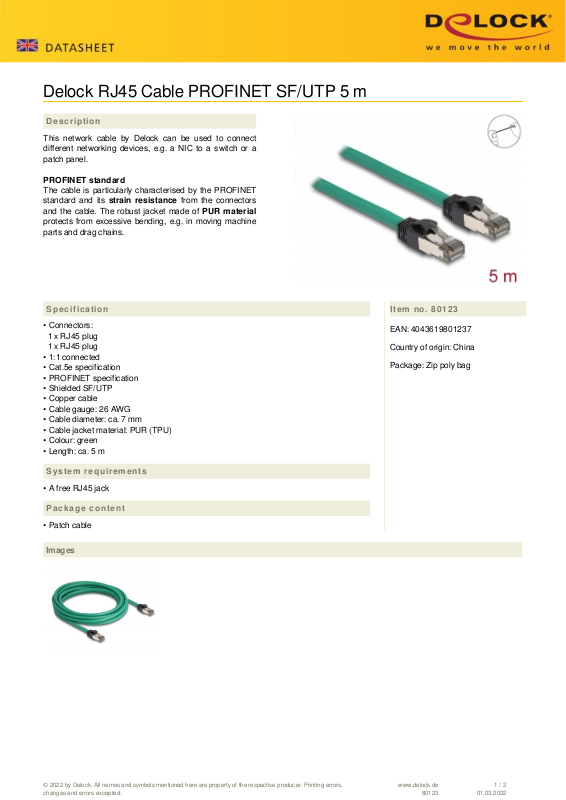

Delock RJ45 Cable PROFINET SF/UTP 5 m
Description
This network cable by Delock can be used to connect
different networking devices, e.g. a NIC to a switch or a
patch panel.
PROFINET standard
The cable is particularly characterised by the PROFINET
standard and its strain resistance from the connectors
and the cable. The robust jacket made of PUR material
protects from excessive bending, e.g. in moving machine
parts and drag chains.
Specification
• Connectors:
1 x RJ45 plug
1 x RJ45 plug
• 1:1 connected
• Cat.5e specification
• PROFINET specification
• Shielded SF/UTP
• Copper cable
• Cable gauge: 26 AWG
• Cable diameter: ca. 7 mm
• Cable jacket material: PUR (TPU)
• Colour: green
• Length: ca. 5 m
Item no. 80123
EAN: 4043619801237
Country of origin: China
Package: Zip poly bag
System requirements
• A free RJ45 jack
Package content
• Patch cable
Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
80123
1 / 2
01.03.2022
Page 2
General
Specification: Cat. 5e
Interface
Connector 1: 1 x RJ45 male
Connector 2: 1 x RJ45 plug
Physical characteristics
Cable diameter: 7 mm
Conductor gauge: 26 AWG
Length: 5 m
Colour: green
