Page 1

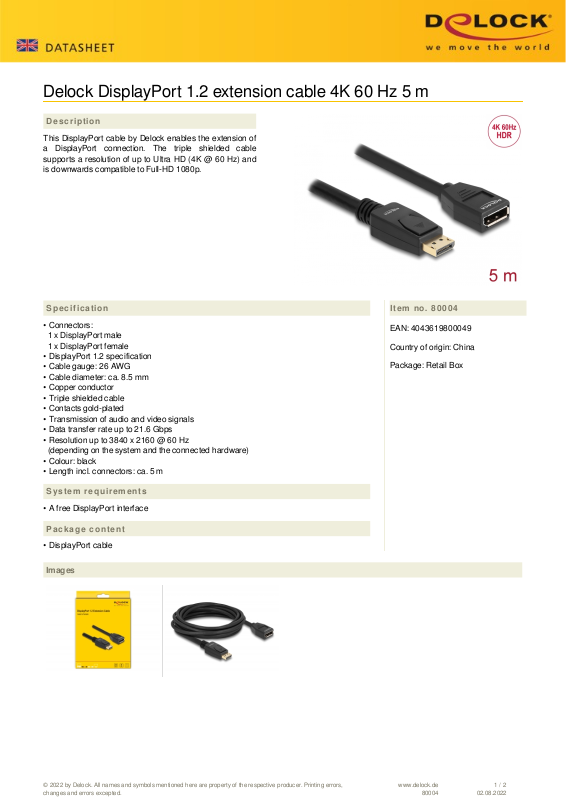

Delock DisplayPort 1.2 extension cable 4K 60 Hz 5 m
Description
This DisplayPort cable by Delock enables the extension of
a DisplayPort connection. The triple shielded cable
supports a resolution of up to Ultra HD (4K @ 60 Hz) and
is downwards compatible to Full-HD 1080p.
Specification
• Connectors:
1 x DisplayPort male
1 x DisplayPort female
• DisplayPort 1.2 specification
• Cable gauge: 26 AWG
• Cable diameter: ca. 8.5 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 21.6 Gbps
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Colour: black
• Length incl. connectors: ca. 5 m
Item no. 80004
EAN: 4043619800049
Country of origin: China
Package: Retail Box
System requirements
• A free DisplayPort interface
Package content
• DisplayPort cable
Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
80004
1 / 2
02.08.2022
Page 2
Interface
Connector 1: 1 x DisplayPort male
Connector 2: 1 x DisplayPort female
Technical characteristics
Data transfer rate: 21,6 Gb/s
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Cable diameter: 8.5 mm
Conductor gauge: 30 AWG
Length: 5 m
Colour: black
Powered by TCPDF (www.tcpdf.org)
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
80004
2 / 2
02.08.2022
