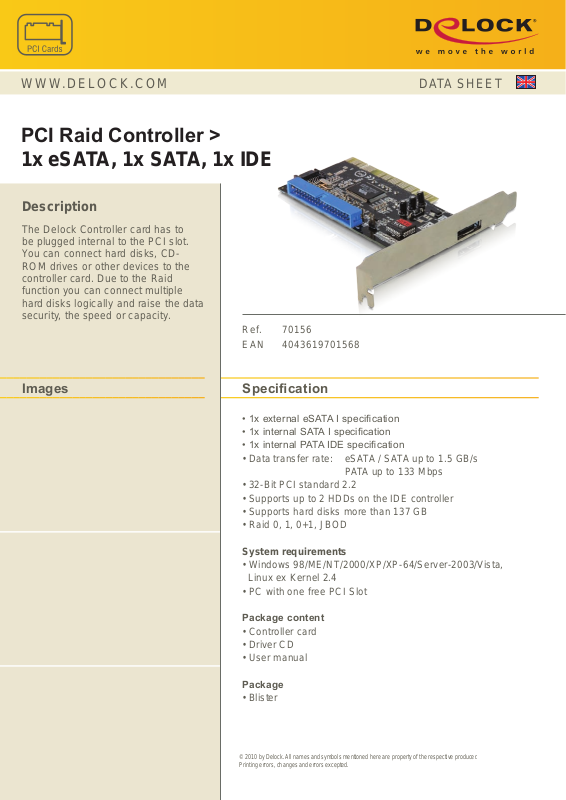

DeLOCK 70156 User Manual

WWW.DELOCK.COM

PCI Raid Controller >

1x eSATA, 1x SATA, 1x IDE

Description

The Delock Controller card has to
be plugged internal to the PCI slot.
You can connect hard disks, CD­ROM drives or other devices to the
controller card. Due to the Raid
function you can connect multiple
hard disks logically and raise the data
security, the speed or capacity.

Ref.
EAN

DATA SHEET

70156
4043619701568

Images

Specication

• 1x external eSATA I specication

• 1x internal SATA I specication

• 1x internal PATA IDE specication

• Data transfer rate: eSATA / SATA up to 1.5 GB/s
PATA up to 133 Mbps

• 32-Bit PCI standard 2.2

• Supports up to 2 HDDs on the IDE controller

• Supports hard disks more than 137 GB

• Raid 0, 1, 0+1, JBOD

System requirements

• Windows 98/ME/NT/2000/XP/XP-64/Server-2003/Vista,
Linux ex Kernel 2.4

• PC with one free PCI Slot

Package content

• Controller card

• Driver CD

• User manual

Package

• Blister
