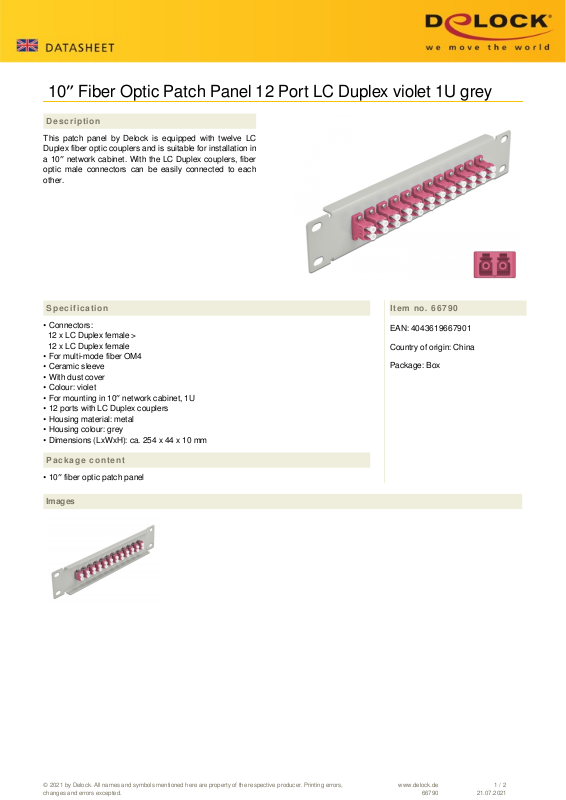

10″ Fiber Optic Patch Panel 12 Port LC Duplex violet 1U grey
Description
This patch panel by Delock is equipped with twelve LC
Duplex fiber optic couplers and is suitable for installation in
a 10″ network cabinet. With the LC Duplex couplers, fiber
optic male connectors can be easily connected to each
other.
Specification
• Connectors:
12 x LC Duplex female >
12 x LC Duplex female
• For multi-mode fiber OM4
• Ceramic sleeve
• With dust cover
• Colour: violet
• For mounting in 10″ network cabinet, 1U
• 12 ports with LC Duplex couplers
• Housing material: metal
• Housing colour: grey
• Dimensions (LxWxH): ca. 254 x 44 x 10 mm
Item no. 66790
EAN: 4043619667901
Country of origin: China
Package: Box
Package content
• 10″ fiber optic patch panel
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
66790
1 / 2
21.07.2021
Page 2
Interface
Connector 1: 12 x LC Duplex female
Connector 2: 12 x LC Duplex female
Physical characteristics
Housing colour: black
Housing material: metal
Length: 254 mm
Width: 44 mm
Height: 10 mm
Colour: violet
