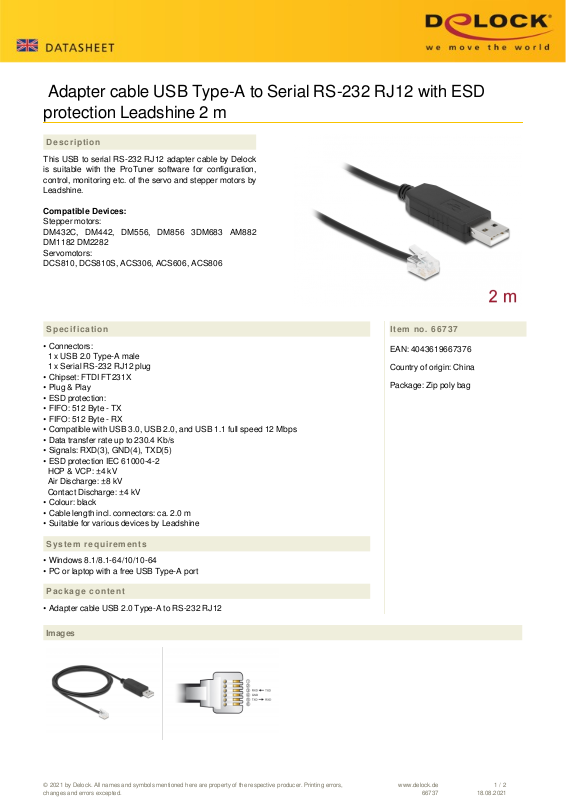

Adapter cable USB Type-A to Serial RS-232 RJ12 with ESD
protection Leadshine 2 m
Description
This USB to serial RS-232 RJ12 adapter cable by Delock
is suitable with the ProTuner software for configuration,
control, monitoring etc. of the servo and stepper motors by
Leadshine.
Compatible Devices:
Stepper motors:
DM432C, DM442, DM556, DM856 3DM683 AM882
DM1182 DM2282
Servomotors:
DCS810, DCS810S, ACS306, ACS606, ACS806
Specification
• Connectors:
1 x USB 2.0 Type-A male
1 x Serial RS-232 RJ12 plug
• Chipset: FTDI FT231X
• Plug & Play
• ESD protection:
• FIFO: 512 Byte - TX
• FIFO: 512 Byte - RX
• Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
• Data transfer rate up to 230.4 Kb/s
• Signals: RXD(3), GND(4), TXD(5)
• ESD protection IEC 61000-4-2
HCP & VCP: ±4 kV
Air Discharge: ±8 kV
Contact Discharge: ±4 kV
• Colour: black
• Cable length incl. connectors: ca. 2.0 m
• Suitable for various devices by Leadshine
Item no. 66737
EAN: 4043619667376
Country of origin: China
Package: Zip poly bag
System requirements
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Package content
• Adapter cable USB 2.0 Type-A to RS-232 RJ12
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
66737
1 / 2
18.08.2021
Page 2
General
Specification: RS-232 (EIA / TIA)
USB 2.0
Supported operating system: Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Interface
Connector 1: 1 x USB 2.0 Type-A male
Connector 2: 1 x RJ12 plug
Technical characteristics
Chipset: FTDI FT231XS
Data transfer rate: bis zu 230,4 Kbps
FIFO: 2 x 512 Byte
Signal transmission: TxD, RxD und GND
UART: USB to serial UART
Physical characteristics
Cable length incl. connector: 2 m
Colour: black
Overvoltage protection: ±8 kV EN / IEC 61000-4-2 Air Gap Discharge
±4 kV EN / IEC 61000-4-2 Contact Discharge
±4 kV EN / IEC 61000-4-2 VCP & HCP
