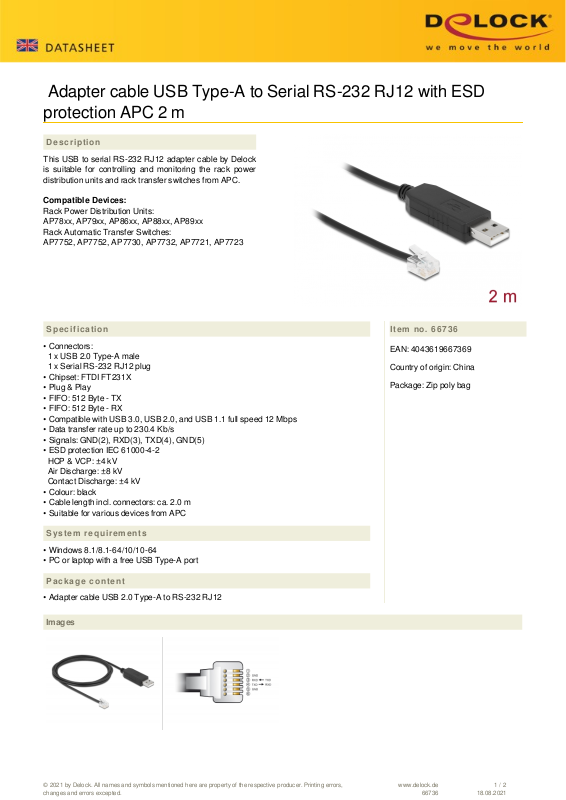

Adapter cable USB Type-A to Serial RS-232 RJ12 with ESD
protection APC 2 m
Description
This USB to serial RS-232 RJ12 adapter cable by Delock
is suitable for controlling and monitoring the rack power
distribution units and rack transfer switches from APC.
Compatible Devices:
Rack Power Distribution Units:
AP78xx, AP79xx, AP86xx, AP88xx, AP89xx
Rack Automatic Transfer Switches:
AP7752, AP7752, AP7730, AP7732, AP7721, AP7723
Specification
• Connectors:
1 x USB 2.0 Type-A male
1 x Serial RS-232 RJ12 plug
• Chipset: FTDI FT231X
• Plug & Play
• FIFO: 512 Byte - TX
• FIFO: 512 Byte - RX
• Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
• Data transfer rate up to 230.4 Kb/s
• Signals: GND(2), RXD(3), TXD(4), GND(5)
• ESD protection IEC 61000-4-2
HCP & VCP: ±4 kV
Air Discharge: ±8 kV
Contact Discharge: ±4 kV
• Colour: black
• Cable length incl. connectors: ca. 2.0 m
• Suitable for various devices from APC
Item no. 66736
EAN: 4043619667369
Country of origin: China
Package: Zip poly bag
System requirements
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Package content
• Adapter cable USB 2.0 Type-A to RS-232 RJ12
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
66736
1 / 2
18.08.2021
Page 2
General
Specification: RS-232 (EIA / TIA)
USB 2.0
Supported operating system: Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Interface
Connector 1: 1 x USB 2.0 Type-A male
Connector 2: 1 x RJ12 plug
Technical characteristics
Chipset: FTDI FT231XS
Data transfer rate: bis zu 230,4 Kbps
FIFO: 2 x 512 Byte
Signal transmission: TxD, RxD und GND
UART: USB to serial UART
Physical characteristics
Cable length incl. connector: 2 m
Colour: black
Overvoltage protection: ±8 kV EN / IEC 61000-4-2 Contact Discharge
±4 kV EN / IEC 61000-4-2 Contact Discharge
±4 kV EN / IEC 61000-4-2 VCP & HCP
