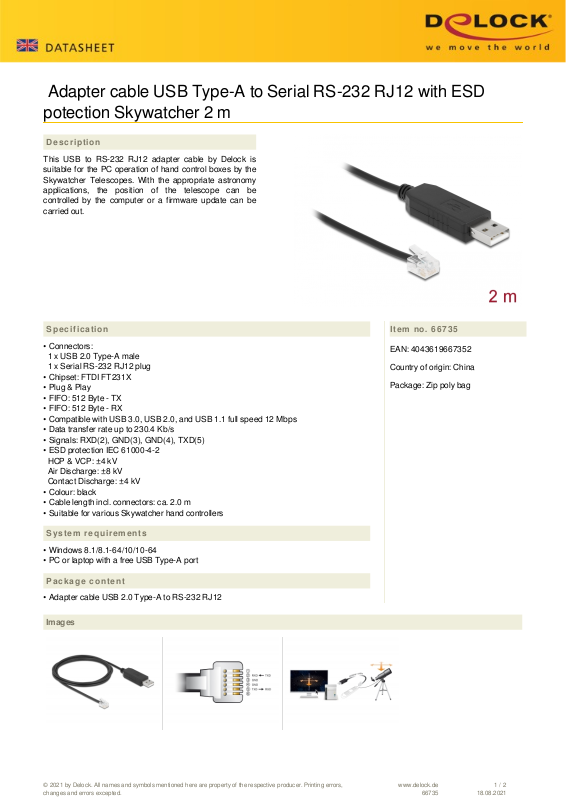

Adapter cable USB Type-A to Serial RS-232 RJ12 with ESD
potection Skywatcher 2 m
Description
This USB to RS-232 RJ12 adapter cable by Delock is
suitable for the PC operation of hand control boxes by the
Skywatcher Telescopes. With the appropriate astronomy
applications, the position of the telescope can be
controlled by the computer or a firmware update can be
carried out.
Specification
• Connectors:
1 x USB 2.0 Type-A male
1 x Serial RS-232 RJ12 plug
• Chipset: FTDI FT231X
• Plug & Play
• FIFO: 512 Byte - TX
• FIFO: 512 Byte - RX
• Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
• Data transfer rate up to 230.4 Kb/s
• Signals: RXD(2), GND(3), GND(4), TXD(5)
• ESD protection IEC 61000-4-2
HCP & VCP: ±4 kV
Air Discharge: ±8 kV
Contact Discharge: ±4 kV
• Colour: black
• Cable length incl. connectors: ca. 2.0 m
• Suitable for various Skywatcher hand controllers
Item no. 66735
EAN: 4043619667352
Country of origin: China
Package: Zip poly bag
System requirements
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Package content
• Adapter cable USB 2.0 Type-A to RS-232 RJ12
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
66735
1 / 2
18.08.2021
Page 2
General
Specification: RS-232 (EIA / TIA)
USB 2.0
Supported operating system: Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Interface
Connector 1: 1 x USB 2.0 Type-A male
Connector 2: 1 x RJ12 plug
Technical characteristics
Chipset: FTDI FT231XS
Data transfer rate: bis zu 230,4 Kbps
FIFO: 2 x 512 Byte
Signal transmission: TxD, RxD und GND
UART: USB to serial UART
Physical characteristics
Cable length incl. connector: 2 m
Colour: black
Overvoltage protection: ±8 kV EN / IEC 61000-4-2 Air Gap Discharge
±4 kV EN / IEC 61000-4-2 Contact Discharge
±4 kV EN / IEC 61000-4-2 VCP & HCP
