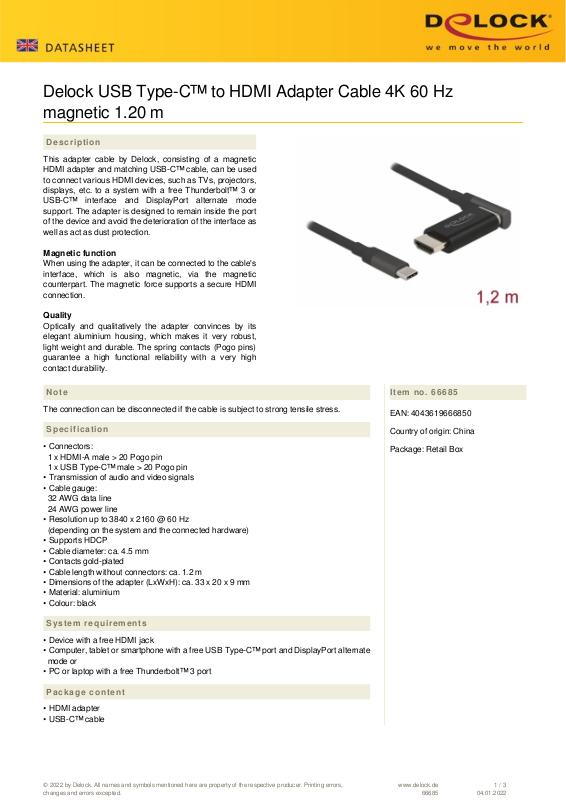

Page 1
Delock USB Type-C™ to HDMI Adapter Cable 4K 60 Hz
magnetic 1.20 m
Description
This adapter cable by Delock, consisting of a magnetic
HDMI adapter and matching USB-C™ cable, can be used
to connect various HDMI devices, such as TVs, projectors,
displays, etc. to a system with a free Thunderbolt™ 3 or
USB-C™ interface and DisplayPort alternate mode
support. The adapter is designed to remain inside the port
of the device and avoid the deterioration of the interface as
well as act as dust protection.
Magnetic function
When using the adapter, it can be connected to the cable's
interface, which is also magnetic, via the magnetic
counterpart. The magnetic force supports a secure HDMI
connection.
Quality
Optically and qualitatively the adapter convinces by its
elegant aluminium housing, which makes it very robust,
light weight and durable. The spring contacts (Pogo pins)
guarantee a high functional reliability with a very high
contact durability.
Note
The connection can be disconnected if the cable is subject to strong tensile stress.
Specification
• Connectors:
1 x HDMI-A male > 20 Pogo pin
1 x USB Type-C™ male > 20 Pogo pin
• Transmission of audio and video signals
• Cable gauge:
32 AWG data line
24 AWG power line
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Supports HDCP
• Cable diameter: ca. 4.5 mm
• Contacts gold-plated
• Cable length without connectors: ca. 1.2 m
• Dimensions of the adapter (LxWxH): ca. 33 x 20 x 9 mm
• Material: aluminium
• Colour: black
Item no. 66685
EAN: 4043619666850
Country of origin: China
Package: Retail Box
System requirements
• Device with a free HDMI jack
• Computer, tablet or smartphone with a free USB Type-C™ port and DisplayPort alternate
mode or
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• HDMI adapter
• USB-C™ cable
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
66685
1 / 3
04.01.2022
Page 2

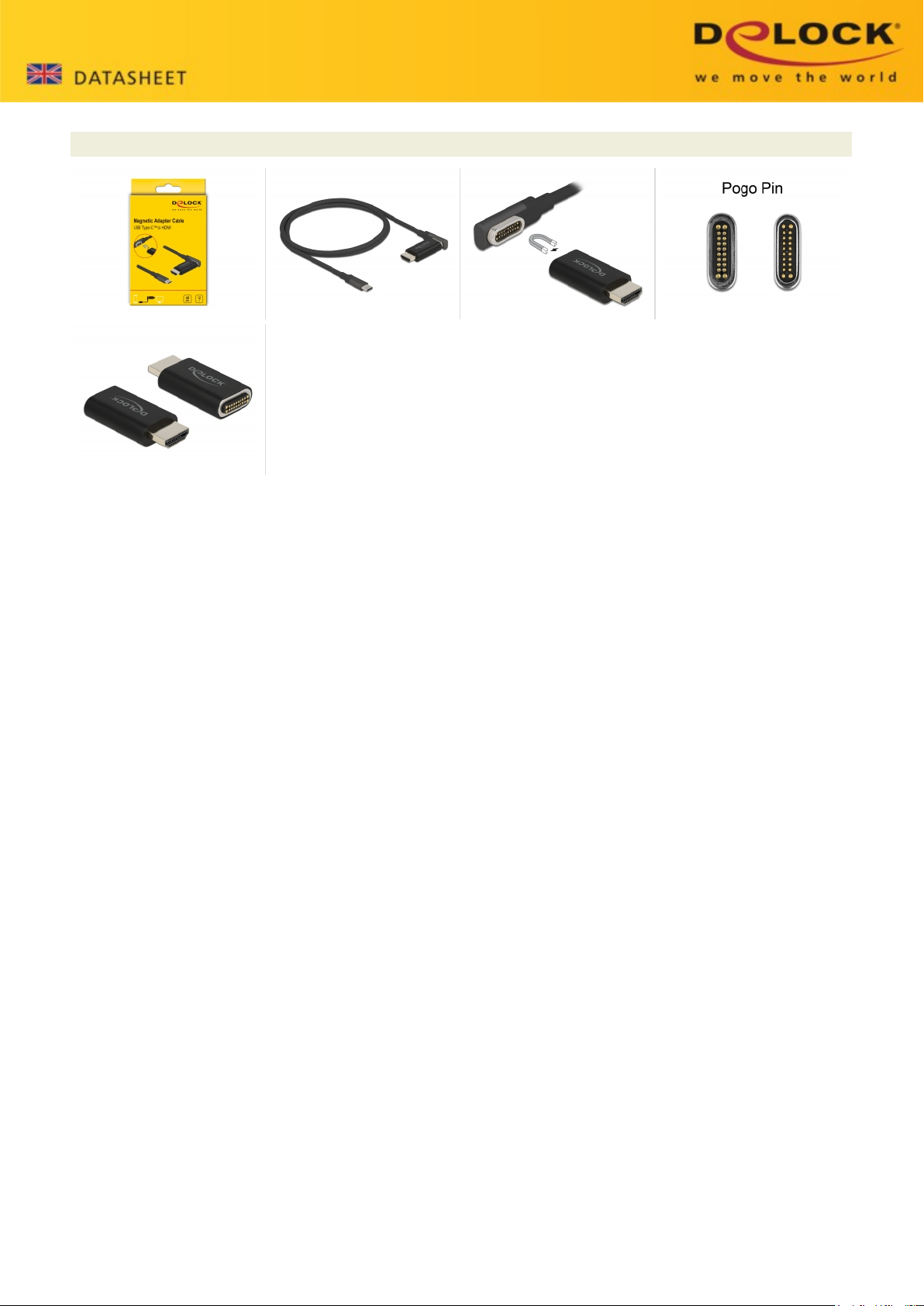

Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
66685
2 / 3
04.01.2022
Page 3
Interface
Connector 1: 1 x HDMI-A male
Technical characteristics
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Length: 33 mm
Width: 20 mm
Height: 9 mm
Colour: black
Powered by TCPDF (www.tcpdf.org)
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
66685
3 / 3
04.01.2022
