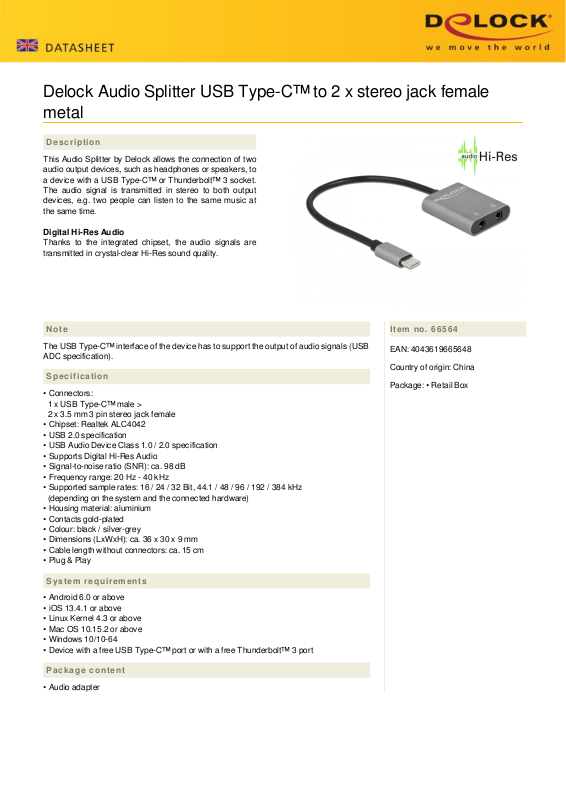

Page 1
Delock Audio Splitter USB Type-C™ to 2 x stereo jack female
metal
Description
This Audio Splitter by Delock allows the connection of two
audio output devices, such as headphones or speakers, to
a device with a USB Type-C™ or Thunderbolt™ 3 socket.
The audio signal is transmitted in stereo to both output
devices, e.g. two people can listen to the same music at
the same time.
Digital Hi-Res Audio
Thanks to the integrated chipset, the audio signals are
transmitted in crystal-clear Hi-Res sound quality.
Note
The USB Type-C™ interface of the device has to support the output of audio signals (USB
ADC specification).
Specification
• Connectors:
1 x USB Type-C™ male >
2 x 3.5 mm 3 pin stereo jack female
• Chipset: Realtek ALC4042
• USB 2.0 specification
• USB Audio Device Class 1.0 / 2.0 specification
• Supports Digital Hi-Res Audio
• Signal-to-noise ratio (SNR): ca. 98 dB
• Frequency range: 20 Hz - 40 kHz
• Supported sample rates: 16 / 24 / 32 Bit, 44.1 / 48 / 96 / 192 / 384 kHz
(depending on the system and the connected hardware)
• Housing material: aluminium
• Contacts gold-plated
• Colour: black / silver-grey
• Dimensions (LxWxH): ca. 36 x 30 x 9 mm
• Cable length without connectors: ca. 15 cm
• Plug & Play
Item no. 66564
EAN: 4043619665648
Country of origin: China
Package: • Retail Box
System requirements
• Android 6.0 or above
• iOS 13.4.1 or above
• Linux Kernel 4.3 or above
• Mac OS 10.15.2 or above
• Windows 10/10-64
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
Package content
• Audio adapter
Page 2

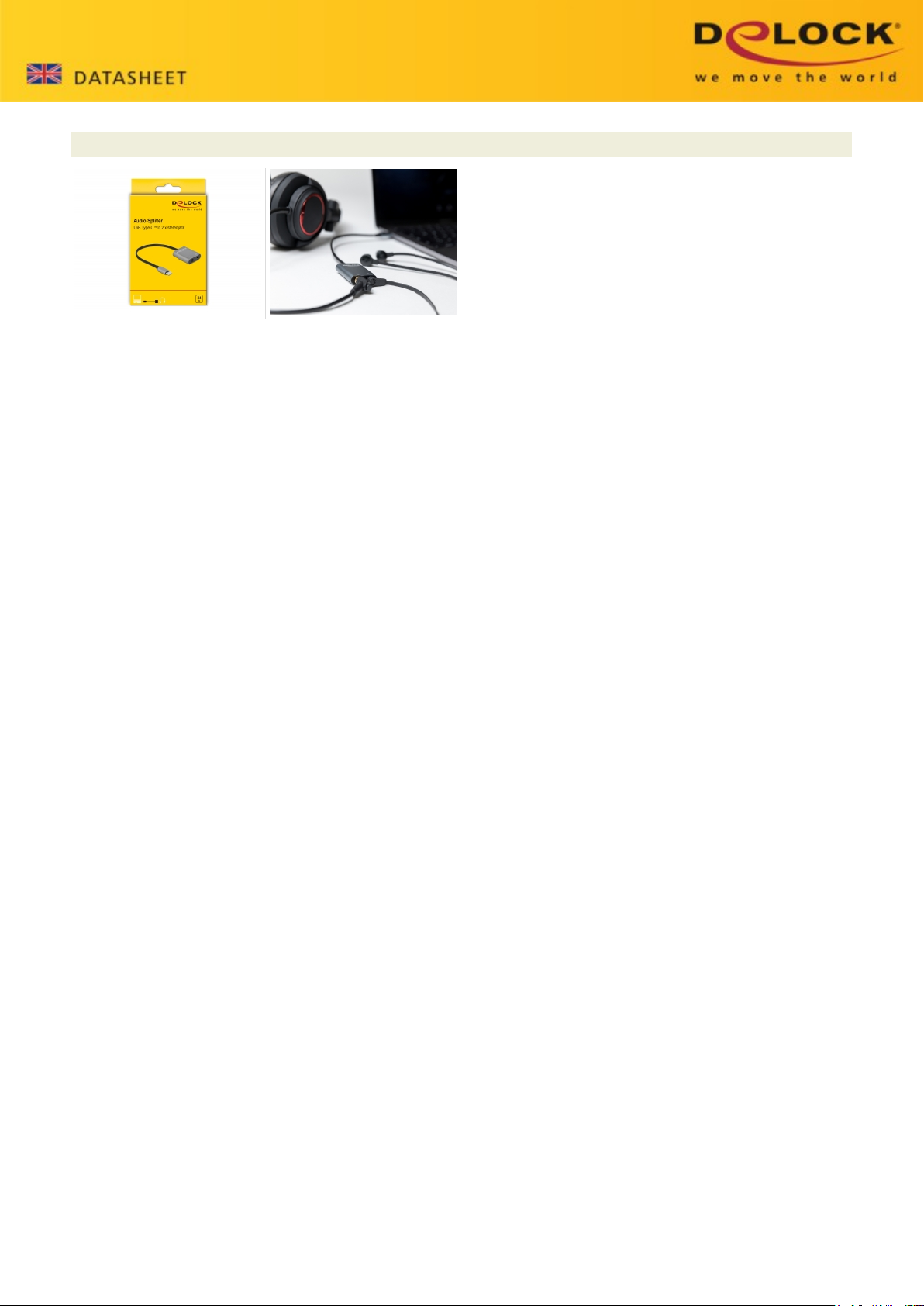

Images
Page 3
General
Specification: USB 2.0
USB Audio Device Class 1.0
USB Audio Device Class 2.0
Supported operating system: Android 6.0 or above
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 4.3 or above
Mac OS 10.15.2 or above
iOS 13.4.1 or above
Interface
Connector 1: 1 x USB 2.0 Type-C male
Connector 2: 2 x 3.5 mm 3 pin stereo jack female
Technical characteristics
Chipset: Realtek ALC4042
Sample rate: 16 / 24 / 32 Bit, 44,1 / 48 / 96 / 192 / 384 kHz
Signal noise ratio (SNR): 98 dB
Physical characteristics
Housing material: Aluminium
Cable length: 15 cm
Pin finishing: gold-plated
Length: 36 mm
Width: 30 mm
Height: 9 mm
Colour: black / silver-grey
