Page 1

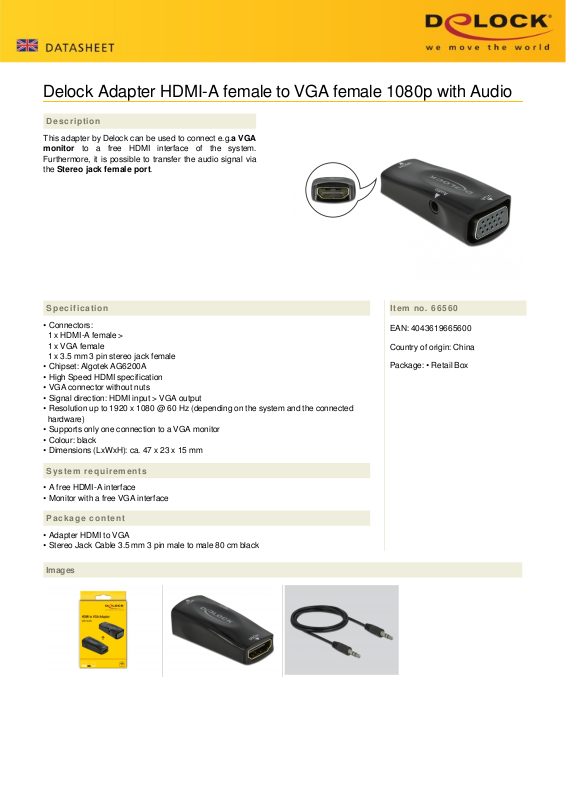

Delock Adapter HDMI-A female to VGA female 1080p with Audio
Description
This adapter by Delock can be used to connect e.g.a VGA
monitor to a free HDMI interface of the system.
Furthermore, it is possible to transfer the audio signal via
the Stereo jack female port.
Specification
• Connectors:
1 x HDMI-A female >
1 x VGA female
1 x 3.5 mm 3 pin stereo jack female
• Chipset: Algotek AG6200A
• High Speed HDMI specification
• VGA connector without nuts
• Signal direction: HDMI input > VGA output
• Resolution up to 1920 x 1080 @ 60 Hz (depending on the system and the connected
hardware)
• Supports only one connection to a VGA monitor
• Colour: black
• Dimensions (LxWxH): ca. 47 x 23 x 15 mm
Item no. 66560
EAN: 4043619665600
Country of origin: China
Package: • Retail Box
System requirements
• A free HDMI-A interface
• Monitor with a free VGA interface
Package content
• Adapter HDMI to VGA
• Stereo Jack Cable 3.5 mm 3 pin male to male 80 cm black
Images
Page 2
Interface
Output: 1 x 3.5 mm 3 pin stereo jack female
1 x VGA 15 pin female
Input: 1 x HDMI-A 19 pin female
Technical characteristics
Chipset: Algotek AG6200A
Maximum screen resolution: 1920 x 1080 @ 60 Hz
Physical characteristics
Housing material: Plastic
Length: 47 mm
Width: 23 mm
Height: 15 mm
Colour: black
