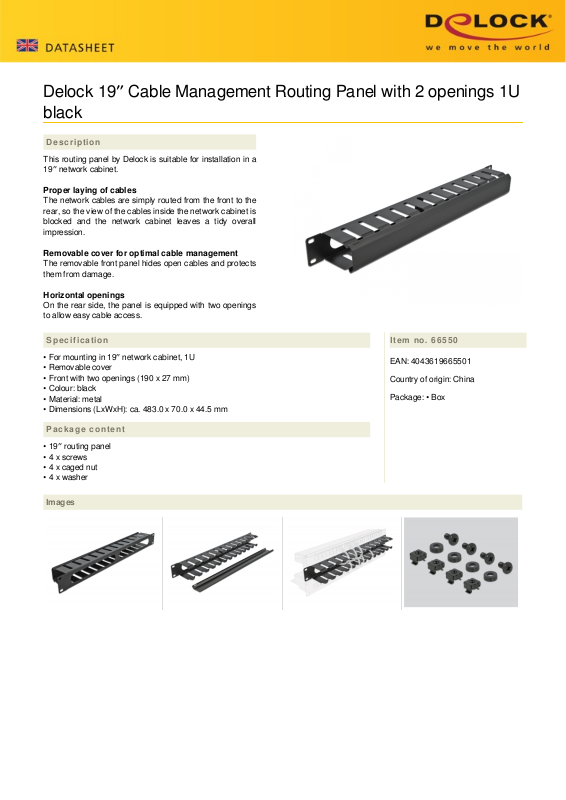

Page 1
Delock 19″ Cable Management Routing Panel with 2 openings 1U
black
Description
This routing panel by Delock is suitable for installation in a
19″ network cabinet.
Proper laying of cables
The network cables are simply routed from the front to the
rear, so the view of the cables inside the network cabinet is
blocked and the network cabinet leaves a tidy overall
impression.
Removable cover for optimal cable management
The removable front panel hides open cables and protects
them from damage.
Horizontal openings
On the rear side, the panel is equipped with two openings
to allow easy cable access.
Specification
• For mounting in 19″ network cabinet, 1U
• Removable cover
• Front with two openings (190 x 27 mm)
• Colour: black
• Material: metal
• Dimensions (LxWxH): ca. 483.0 x 70.0 x 44.5 mm
Item no. 66550
EAN: 4043619665501
Country of origin: China
Package: • Box
Package content
• 19″ routing panel
• 4 x screws
• 4 x caged nut
• 4 x washer
Images
Page 2
General
Mounting type: 19 in
Physical characteristics
Material: metal
Length: 483 mm
Width: 70 mm
Height: 44.5 mm
Colour: black
