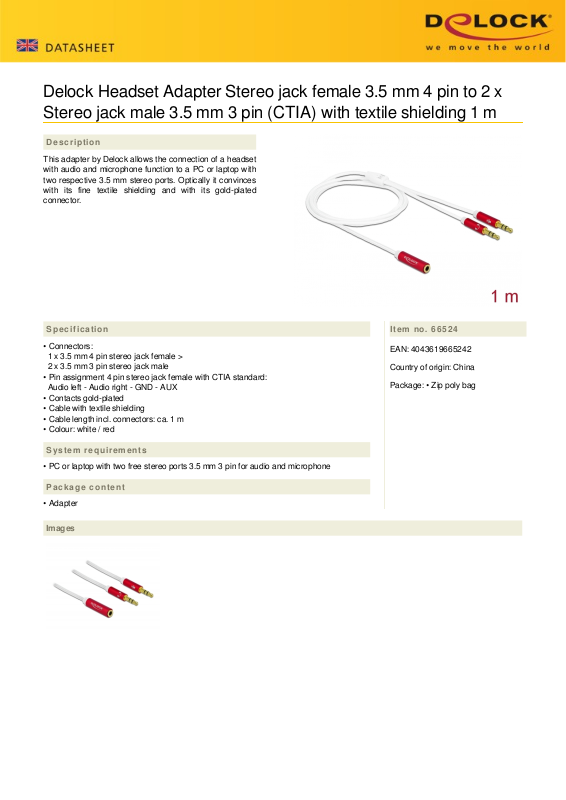

Page 1
Delock Headset Adapter Stereo jack female 3.5 mm 4 pin to 2 x
Stereo jack male 3.5 mm 3 pin (CTIA) with textile shielding 1 m
Description
This adapter by Delock allows the connection of a headset
with audio and microphone function to a PC or laptop with
two respective 3.5 mm stereo ports. Optically it convinces
with its fine textile shielding and with its gold-plated
connector.
Specification
• Connectors:
1 x 3.5 mm 4 pin stereo jack female >
2 x 3.5 mm 3 pin stereo jack male
• Pin assignment 4 pin stereo jack female with CTIA standard:
Audio left - Audio right - GND - AUX
• Contacts gold-plated
• Cable with textile shielding
• Cable length incl. connectors: ca. 1 m
• Colour: white / red
Item no. 66524
EAN: 4043619665242
Country of origin: China
Package: • Zip poly bag
System requirements
• PC or laptop with two free stereo ports 3.5 mm 3 pin for audio and microphone
Package content
• Adapter
Images
Page 2
Interface
Connector 1: 1 x 3.5 mm 4 pin stereo jack female
Connector 2: 2 x 3,5 mm 3 Pin Klinkenstecker
Physical characteristics
Conductor gauge: 31 AWG
Length: 1 m
Colour: red
white
