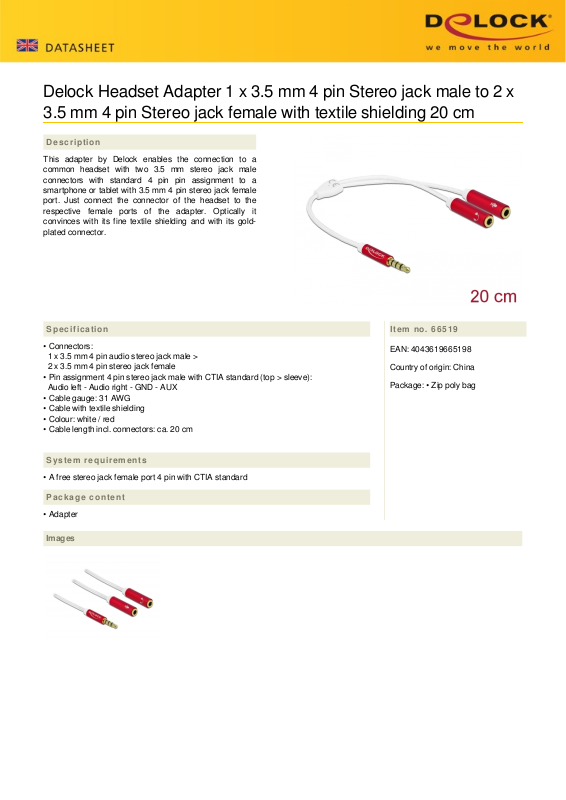

Delock Headset Adapter 1 x 3.5 mm 4 pin Stereo jack male to 2 x
3.5 mm 4 pin Stereo jack female with textile shielding 20 cm
Description
This adapter by Delock enables the connection to a
common headset with two 3.5 mm stereo jack male
connectors with standard 4 pin pin assignment to a
smartphone or tablet with 3.5 mm 4 pin stereo jack female
port. Just connect the connector of the headset to the
respective female ports of the adapter. Optically it
convinces with its fine textile shielding and with its goldplated connector.
Specification
• Connectors:
1 x 3.5 mm 4 pin audio stereo jack male >
2 x 3.5 mm 4 pin stereo jack female
• Pin assignment 4 pin stereo jack male with CTIA standard (top > sleeve):
Audio left - Audio right - GND - AUX
• Cable gauge: 31 AWG
• Cable with textile shielding
• Colour: white / red
• Cable length incl. connectors: ca. 20 cm
Item no. 66519
EAN: 4043619665198
Country of origin: China
Package: • Zip poly bag
System requirements
• A free stereo jack female port 4 pin with CTIA standard
Package content
• Adapter
Images
Page 2
Interface
Connector 1: 1 x 3.5 mm 3 pin stereo jack male
Connector 2: 2 x 3.5 mm 4 pin stereo jack female
Physical characteristics
Conductor gauge: 31 AWG
Length: 20 cm
Colour: red
white
