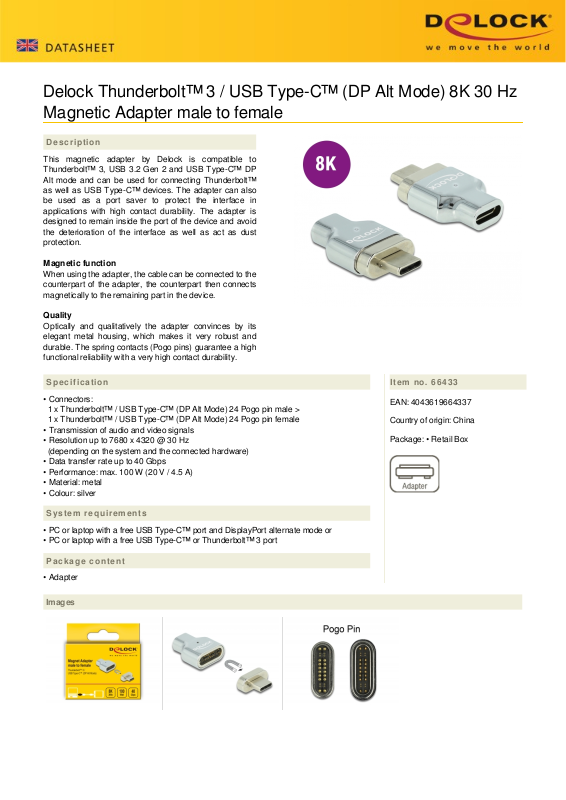

Delock Thunderbolt™ 3 / USB Type-C™ (DP Alt Mode) 8K 30 Hz
Magnetic Adapter male to female
Description
This magnetic adapter by Delock is compatible to
Thunderbolt™ 3, USB 3.2 Gen 2 and USB Type-C™ DP
Alt mode and can be used for connecting Thunderbolt™
as well as USB Type-C™ devices. The adapter can also
be used as a port saver to protect the interface in
applications with high contact durability. The adapter is
designed to remain inside the port of the device and avoid
the deterioration of the interface as well as act as dust
protection.
Magnetic function
When using the adapter, the cable can be connected to the
counterpart of the adapter, the counterpart then connects
magnetically to the remaining part in the device.
Quality
Optically and qualitatively the adapter convinces by its
elegant metal housing, which makes it very robust and
durable. The spring contacts (Pogo pins) guarantee a high
functional reliability with a very high contact durability.
Specification
• Connectors:
1 x Thunderbolt™ / USB Type-C™ (DP Alt Mode) 24 Pogo pin male >
1 x Thunderbolt™ / USB Type-C™ (DP Alt Mode) 24 Pogo pin female
• Transmission of audio and video signals
• Resolution up to 7680 x 4320 @ 30 Hz
(depending on the system and the connected hardware)
• Data transfer rate up to 40 Gbps
• Performance: max. 100 W (20 V / 4.5 A)
• Material: metal
• Colour: silver
Item no. 66433
EAN: 4043619664337
Country of origin: China
Package: • Retail Box
System requirements
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Package content
• Adapter
Images
Page 2
General
Specification: Thunderbolt™ 3
Technical characteristics
Data transfer rate: Thunderbolt™ 3 up to 40 Gb/s
Maximum screen resolution: 7680 x 4320 @ 30 Hz
Physical characteristics
Material: metal
Colour: silver
