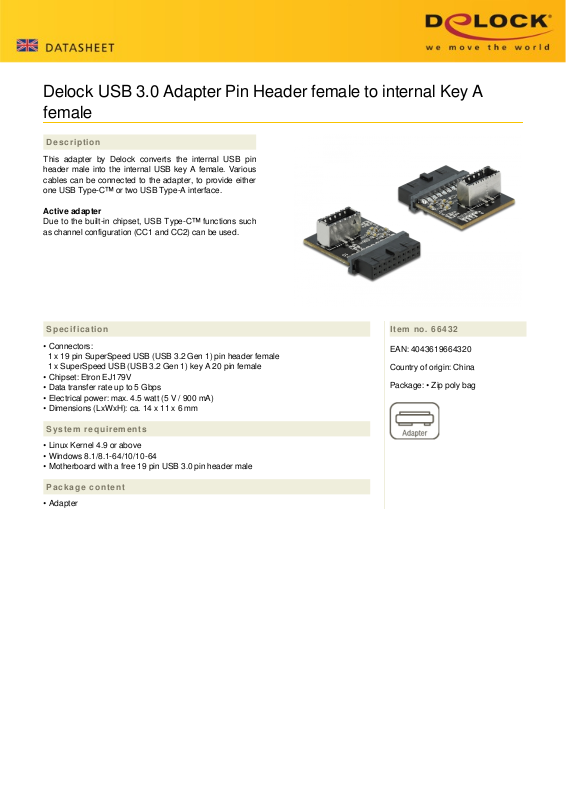

Page 1
Delock USB 3.0 Adapter Pin Header female to internal Key A
female
Description
This adapter by Delock converts the internal USB pin
header male into the internal USB key A female. Various
cables can be connected to the adapter, to provide either
one USB Type-C™ or two USB Type-A interface.
Active adapter
Due to the built-in chipset, USB Type-C™ functions such
as channel configuration (CC1 and CC2) can be used.
Specification
• Connectors:
1 x 19 pin SuperSpeed USB (USB 3.2 Gen 1) pin header female
1 x SuperSpeed USB (USB 3.2 Gen 1) key A 20 pin female
• Chipset: Etron EJ179V
• Data transfer rate up to 5 Gbps
• Electrical power: max. 4.5 watt (5 V / 900 mA)
• Dimensions (LxWxH): ca. 14 x 11 x 6 mm
Item no. 66432
EAN: 4043619664320
Country of origin: China
Package: • Zip poly bag
System requirements
• Linux Kernel 4.9 or above
• Windows 8.1/8.1-64/10/10-64
• Motherboard with a free 19 pin USB 3.0 pin header male
Package content
• Adapter
Page 2
General
Specification: USB 3.0
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 4.9 or above
Interface
Connector 1: 1 x 20 pin USB 3.0 pin header female
Connector 2: 1 x SuperSpeed USB (USB 3.2 Gen 1) key A 20 pin female
Technical characteristics
Chipset: Etron EJ179V
Data transfer rate: USB 3.0 up to 5 Gb/s
Physical characteristics
Length: 14 mm
Width: 11 mm
Height: 6 mm
