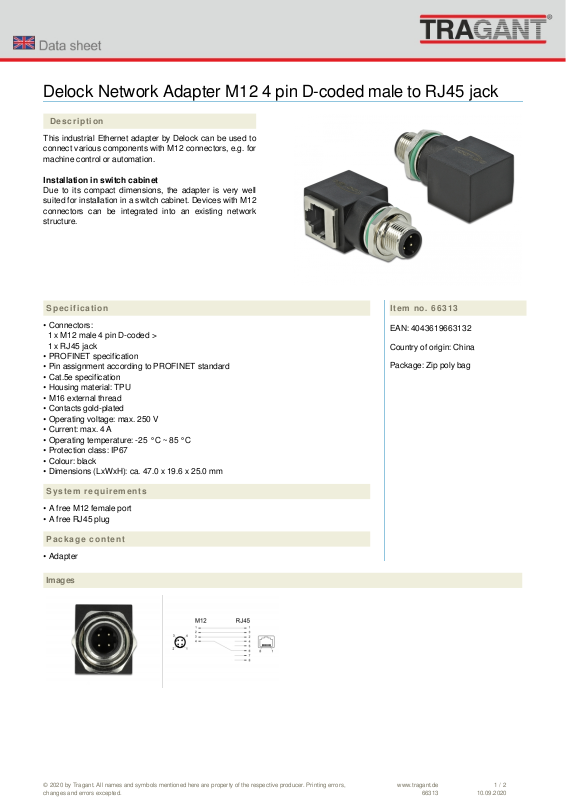

Delock Network Adapter M12 4 pin D-coded male to RJ45 jack
Description
This industrial Ethernet adapter by Delock can be used to
connect various components with M12 connectors, e.g. for
machine control or automation.
Installation in switch cabinet
Due to its compact dimensions, the adapter is very well
suited for installation in a switch cabinet. Devices with M12
connectors can be integrated into an existing network
structure.
Specification
• Connectors:
1 x M12 male 4 pin D-coded >
1 x RJ45 jack
• PROFINET specification
• Pin assignment according to PROFINET standard
• Cat.5e specification
• Housing material: TPU
• M16 external thread
• Contacts gold-plated
• Operating voltage: max. 250 V
• Current: max. 4 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Colour: black
• Dimensions (LxWxH): ca. 47.0 x 19.6 x 25.0 mm
Item no. 66313
EAN: 4043619663132
Country of origin: China
Package: Zip poly bag
System requirements
• A free M12 female port
• A free RJ45 plug
Package content
• Adapter

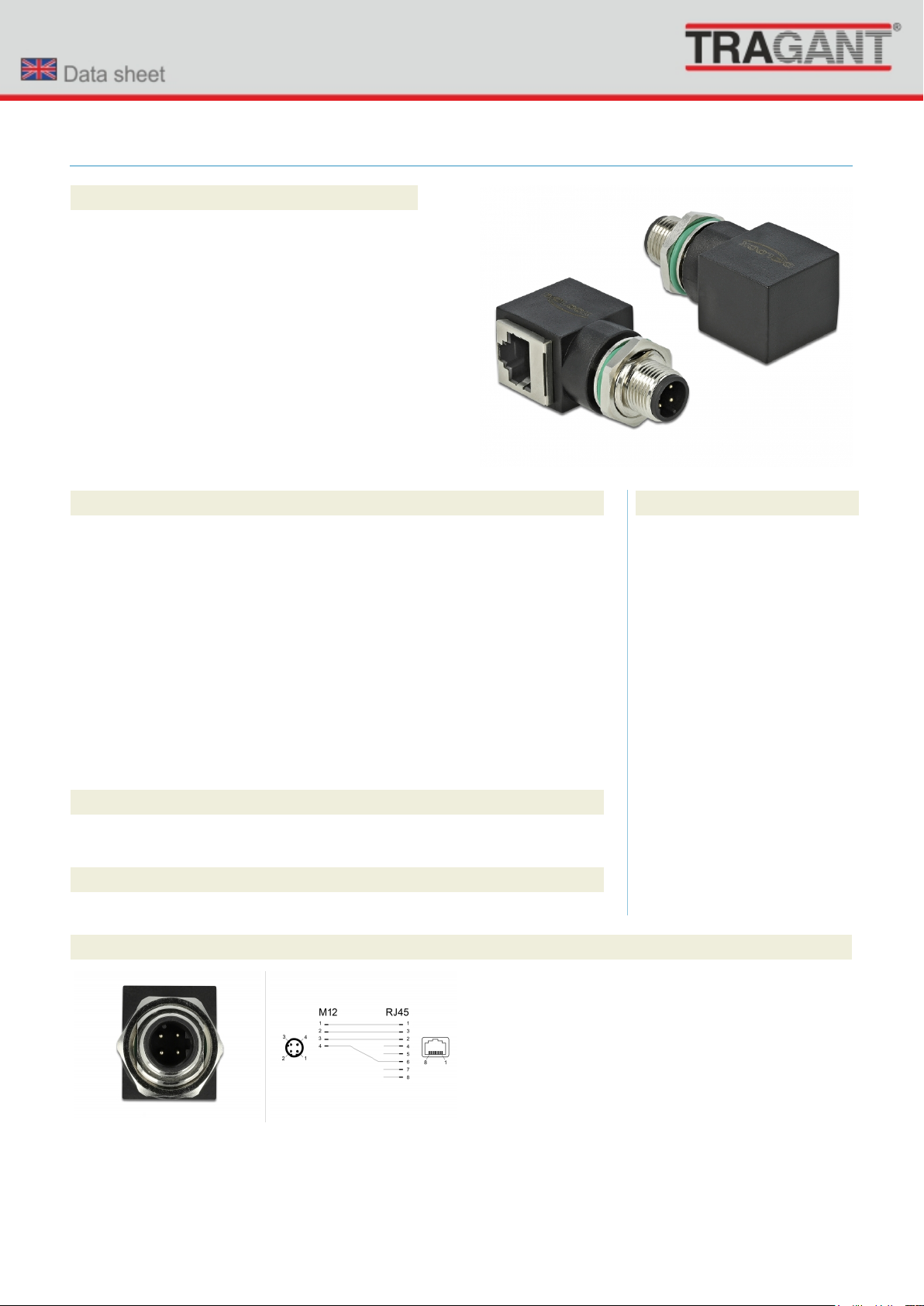

Images
© 2020 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
66313
1 / 2
10.09.2020
Page 2
General
Specification: standard
Cat. 5e
PROFINET
Style: standard
angled 90°
Interface
Connector 1: standard
1 x M12 male 4 pin D-coded
Connector 2: standard
1 x RJ45 jack
Technical characteristics
Operating voltage: standard
250 V
Operating temperature: standard
-25 °C ~ 85 °C
Current consumption: standard
4 A
Protection class: standard
IP67
Physical characteristics
Housing material: standard
TPU
Pin finishing: standard
gold-plated
Length: standard
47 mm
Width: standard
19,6 mm
Height: standard
25 mm
Colour: standard
black
