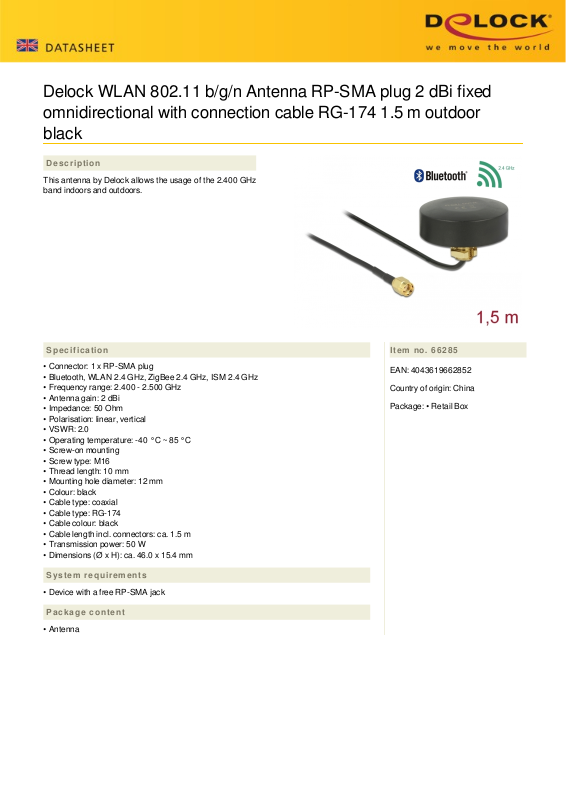

Page 1
Delock WLAN 802.11 b/g/n Antenna RP-SMA plug 2 dBi fixed
omnidirectional with connection cable RG-174 1.5 m outdoor
black
Description
This antenna by Delock allows the usage of the 2.400 GHz
band indoors and outdoors.
Specification
• Connector: 1 x RP-SMA plug
• Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz
• Frequency range: 2.400 - 2.500 GHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Screw-on mounting
• Screw type: M16
• Thread length: 10 mm
• Mounting hole diameter: 12 mm
• Colour: black
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable length incl. connectors: ca. 1.5 m
• Transmission power: 50 W
• Dimensions (Ø x H): ca. 46.0 x 15.4 mm
Item no. 66285
EAN: 4043619662852
Country of origin: China
Package: • Retail Box
System requirements
• Device with a free RP-SMA jack
Package content
• Antenna
Page 2

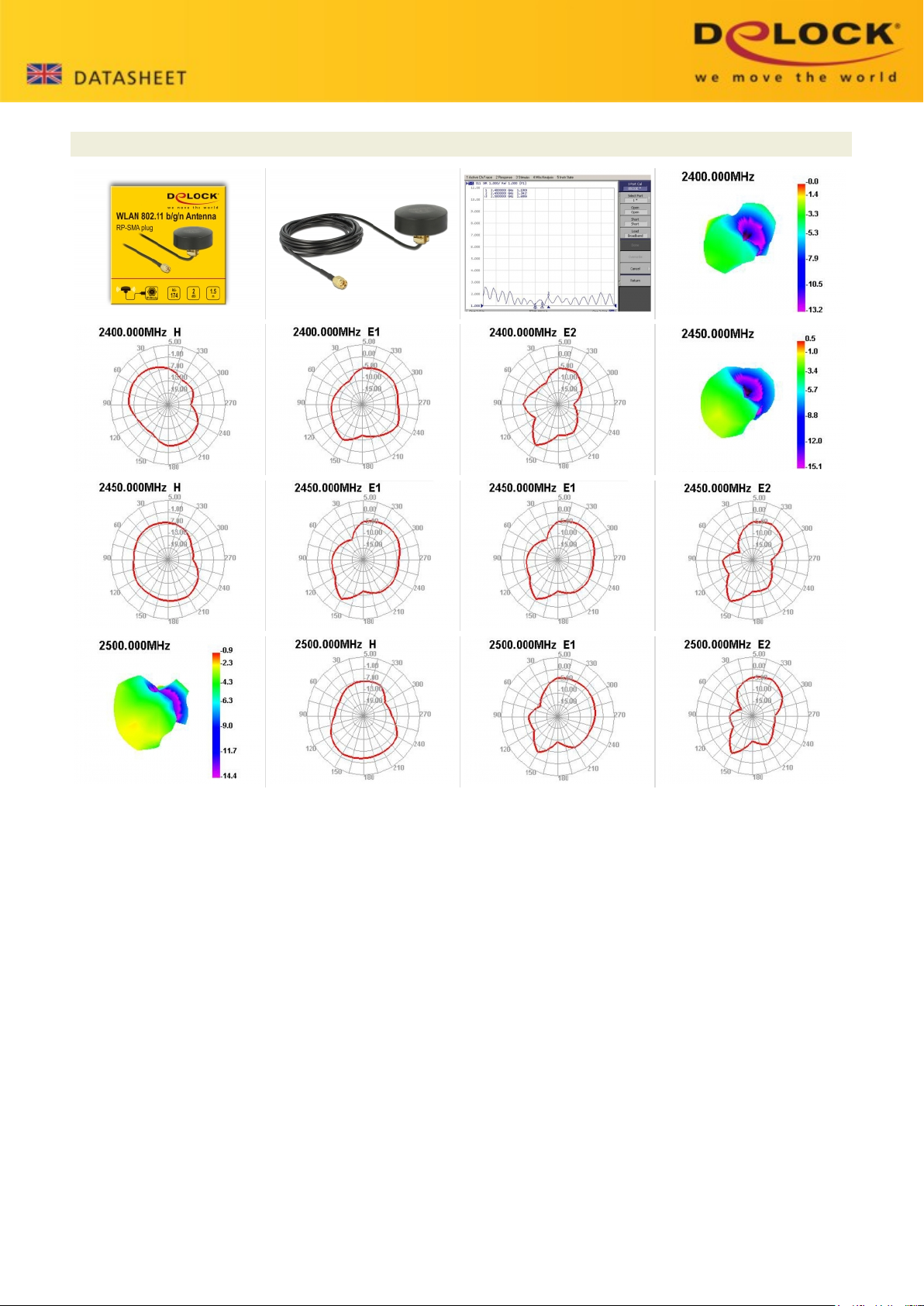

Images
Page 3
General
Mounting type: Screw mounting with 12.5 mm hole diameter
Suitable for outdoor: yes
Interface
connector: 1 x RP-SMA plug
Technical characteristics
Frequency range: 2400 MHz - 2500 MHz
Antenna gain: 2 dBi
Impedance: 50 Ω
VSWR: 2.0
Physical characteristics
Antenna type: omnidirectional
Thread length: 11,0
Cable category: coaxial
Cable type: RG-174
Cable attenuation: 3.2 dB @ 2.4 GHz per meter
Cable colour: black
Cable diameter: 2.7 mm
Cable length incl. connector: 1.5 m
Smallest bending radius: 4.5 mm
Colour: black
Thread type: M12
Dimensions (LxØ): 46.0 x 15.4 mm
