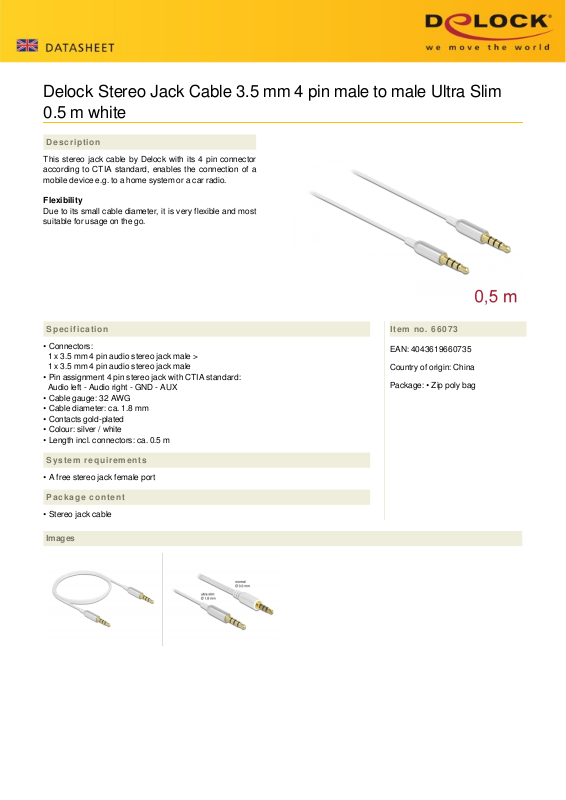

Page 1
Delock Stereo Jack Cable 3.5 mm 4 pin male to male Ultra Slim
0.5 m white
Description
This stereo jack cable by Delock with its 4 pin connector
according to CTIA standard, enables the connection of a
mobile device e.g. to a home system or a car radio.
Flexibility
Due to its small cable diameter, it is very flexible and most
suitable for usage on the go.
Specification
• Connectors:
1 x 3.5 mm 4 pin audio stereo jack male >
1 x 3.5 mm 4 pin audio stereo jack male
• Pin assignment 4 pin stereo jack with CTIA standard:
Audio left - Audio right - GND - AUX
• Cable gauge: 32 AWG
• Cable diameter: ca. 1.8 mm
• Contacts gold-plated
• Colour: silver / white
• Length incl. connectors: ca. 0.5 m
Item no. 66073
EAN: 4043619660735
Country of origin: China
Package: • Zip poly bag
System requirements
• A free stereo jack female port
Package content
• Stereo jack cable
Images
Page 2
Interface
Connector 1: 1 x 3.5 mm 4 pin audio stereo jack male
Connector 2: 1 x 3.5 mm 4 pin stereo jack male
Physical characteristics
Conductor gauge: 31 AWG
Material: Aluminium
PVC
Length: 50 cm
Colour: white / silver
Cable diameter: 2 mm
