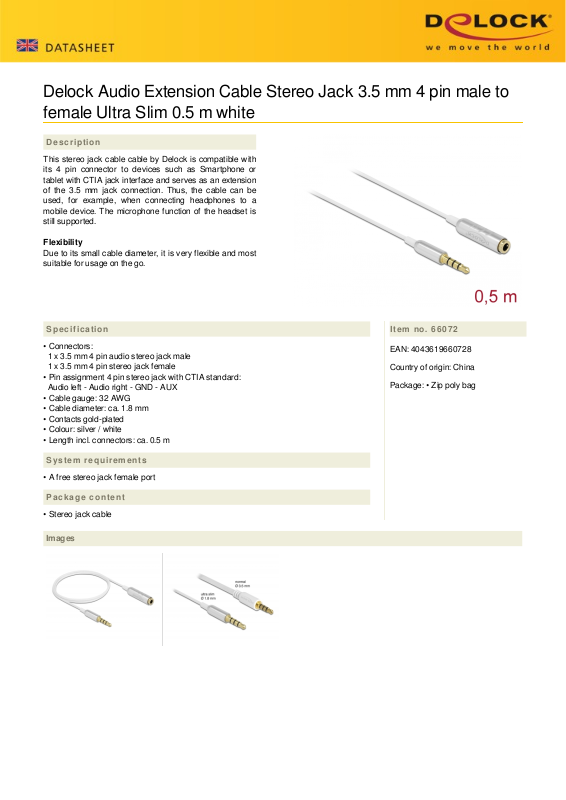

Page 1
Delock Audio Extension Cable Stereo Jack 3.5 mm 4 pin male to
female Ultra Slim 0.5 m white
Description
This stereo jack cable cable by Delock is compatible with
its 4 pin connector to devices such as Smartphone or
tablet with CTIA jack interface and serves as an extension
of the 3.5 mm jack connection. Thus, the cable can be
used, for example, when connecting headphones to a
mobile device. The microphone function of the headset is
still supported.
Flexibility
Due to its small cable diameter, it is very flexible and most
suitable for usage on the go.
Specification
• Connectors:
1 x 3.5 mm 4 pin audio stereo jack male
1 x 3.5 mm 4 pin stereo jack female
• Pin assignment 4 pin stereo jack with CTIA standard:
Audio left - Audio right - GND - AUX
• Cable gauge: 32 AWG
• Cable diameter: ca. 1.8 mm
• Contacts gold-plated
• Colour: silver / white
• Length incl. connectors: ca. 0.5 m
Item no. 66072
EAN: 4043619660728
Country of origin: China
Package: • Zip poly bag
System requirements
• A free stereo jack female port
Package content
• Stereo jack cable
Images
Page 2
Interface
Connector 1: 1 x 3.5 mm 4 pin audio stereo jack male
Connector 2: 1 x 3.5 mm 4 pin stereo jack female
Physical characteristics
Conductor gauge: 31 AWG
Material: Aluminium
PVC
Length: 50 cm
Colour: white / silver
Cable diameter: 2 mm
