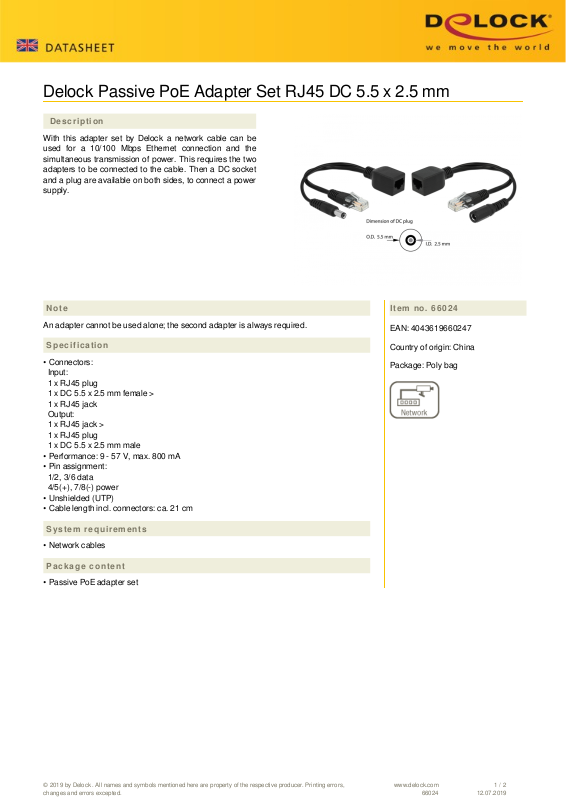

Delock Passive PoE Adapter Set RJ45 DC 5.5 x 2.5 mm
Description
With this adapter set by Delock a network cable can be
used for a 10/100 Mbps Ethernet connection and the
simultaneous transmission of power. This requires the two
adapters to be connected to the cable. Then a DC socket
and a plug are available on both sides, to connect a power
supply.
Note
An adapter cannot be used alone; the second adapter is always required.
Specification
• Connectors:
Input:
1 x RJ45 plug
1 x DC 5.5 x 2.5 mm female >
1 x RJ45 jack
Output:
1 x RJ45 jack >
1 x RJ45 plug
1 x DC 5.5 x 2.5 mm male
• Performance: 9 - 57 V, max. 800 mA
• Pin assignment:
1/2, 3/6 data
4/5(+), 7/8(-) power
• Unshielded (UTP)
• Cable length incl. connectors: ca. 21 cm
Item no. 66024
EAN: 4043619660247
Country of origin: China
Package: Poly bag
System requirements
• Network cables
Package content
• Passive PoE adapter set
© 2019 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
66024
1 / 2
12.07.2019
Page 2
Interface
Output: 1 x RJ45 jack
1 x RJ45 plug
1 x DC 5.5 x 2.1 mm male
Input: 1 x RJ45 jack
1 x DC 5.5 x 2.1 mm female
1 x RJ45 male
Technical characteristics
Data transfer rate: Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Physical characteristics
Cable length incl. connector: 20 cm
