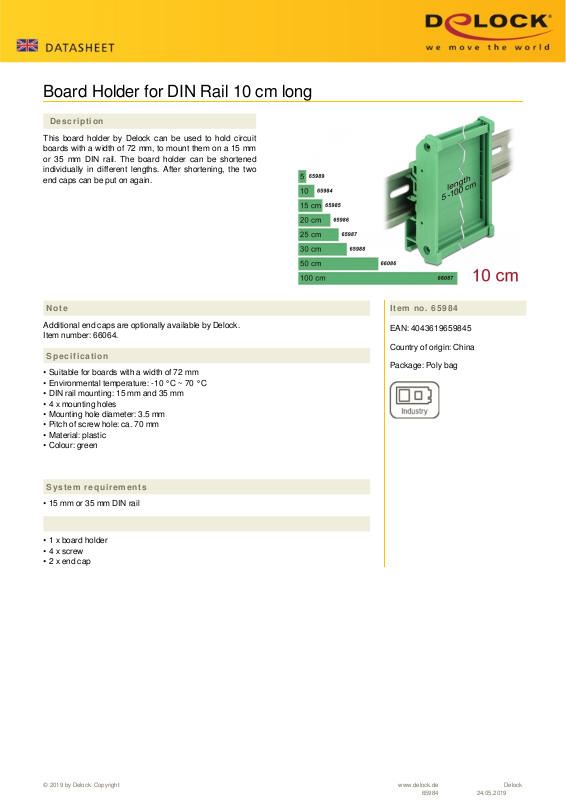

Board Holder for DIN Rail 10 cm long
Description
This board holder by Delock can be used to hold circuit
boards with a width of 72 mm, to mount them on a 15 mm
or 35 mm DIN rail. The board holder can be shortened
individually in different lengths. After shortening, the two
end caps can be put on again.
Note
Additional end caps are optionally available by Delock.
Item number: 66064.
Specification
• Suitable for boards with a width of 72 mm
• Environmental temperature: -10 °C ~ 70 °C
• DIN rail mounting: 15 mm and 35 mm
• 4 x mounting holes
• Mounting hole diameter: 3.5 mm
• Pitch of screw hole: ca. 70 mm
• Material: plastic
• Colour: green
Item no. 65984
EAN: 4043619659845
Country of origin: China
Package: Poly bag
System requirements
• 15 mm or 35 mm DIN rail
• 1 x board holder
• 4 x screw
• 2 x end cap
© 2019 by Delock. Copyright www.delock.de
65984
24.05.2019
Delock
Page 2

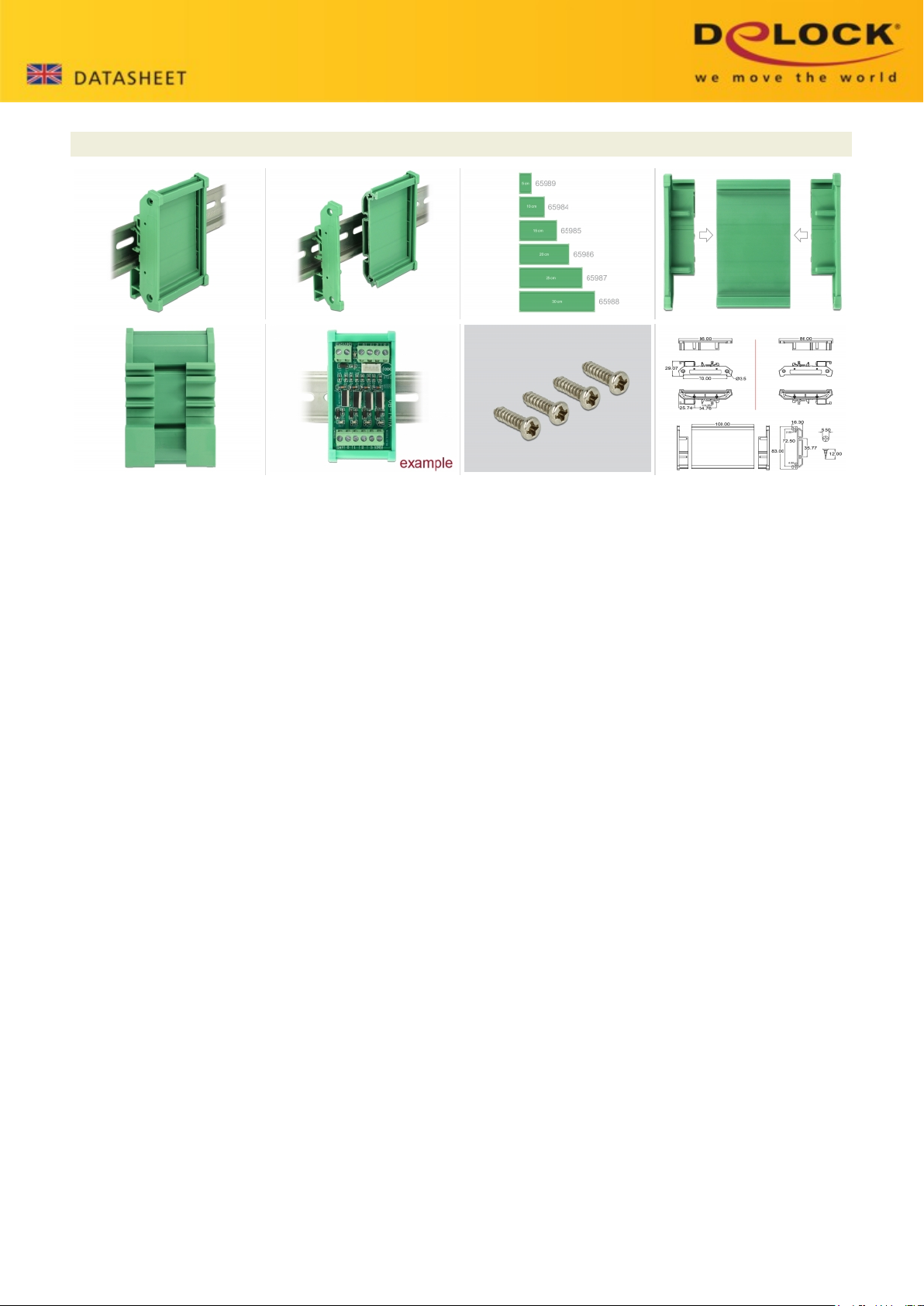

Images
© 2019 by Delock. Copyright www.delock.de
65984
24.05.2019
Delock
Page 3
General
Mounting type: standard
DIN rail mounting: 15 mm and 35 mm
Technical characteristics
Storage temperature: standard
-10 °C ~ 70 °C
Physical characteristics
Housing material: standard
Plastic
Length: standard
10 cm
Colour: standard
green
