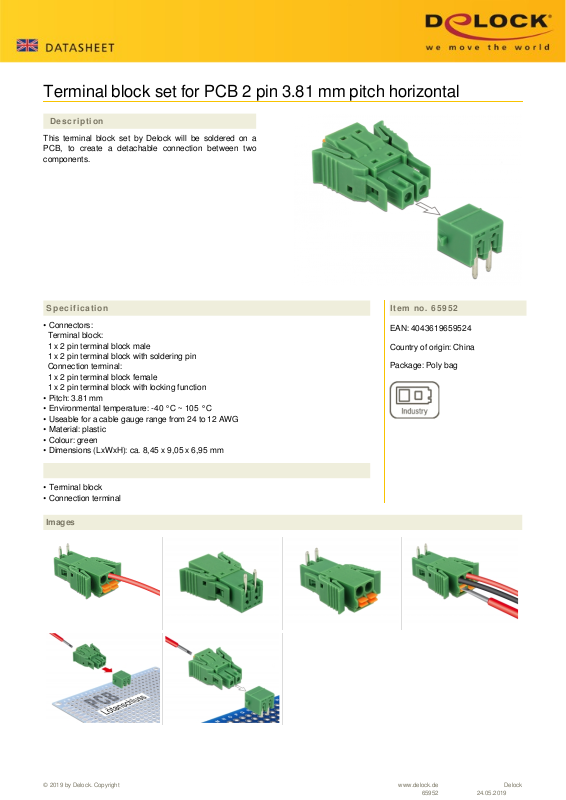

Page 1
Terminal block set for PCB 2 pin 3.81 mm pitch horizontal
Description
This terminal block set by Delock will be soldered on a
PCB, to create a detachable connection between two
components.
Specification
• Connectors:
Terminal block:
1 x 2 pin terminal block male
1 x 2 pin terminal block with soldering pin
Connection terminal:
1 x 2 pin terminal block female
1 x 2 pin terminal block with locking function
• Pitch: 3.81 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 24 to 12 AWG
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 8,45 x 9,05 x 6,95 mm
Item no. 65952
EAN: 4043619659524
Country of origin: China
Package: Poly bag
• Terminal block
• Connection terminal
Images
© 2019 by Delock. Copyright www.delock.de
65952
24.05.2019
Delock
Page 2
General
Suitable for conductor gauge: standard
24 - 12 AWG
Interface
Connector 1: standard
1 x 2 pin terminal block male
Connector 2: standard
1 x 2 pin terminal block with soldering pin
connector 3: standard
1 x 2 pin terminal block female
connector 4: standard
1 x 2 pin terminal block with locking function
Technical characteristics
Storage temperature: standard
-40 °C ~ 105 °C
Physical characteristics
Pitch distance: standard
3.81 mm
Housing colour: standard
green
Housing material: standard
Plastic
Length: standard
8.45 mm
Width: standard
9.05 mm
Height: standard
6.95 mm
