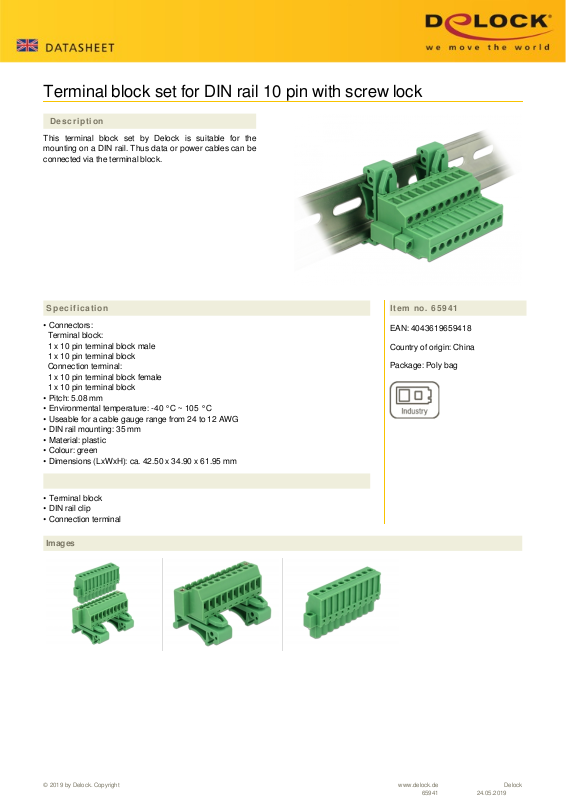

Page 1
Terminal block set for DIN rail 10 pin with screw lock
Description
This terminal block set by Delock is suitable for the
mounting on a DIN rail. Thus data or power cables can be
connected via the terminal block.
Specification
• Connectors:
Terminal block:
1 x 10 pin terminal block male
1 x 10 pin terminal block
Connection terminal:
1 x 10 pin terminal block female
1 x 10 pin terminal block
• Pitch: 5.08 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 24 to 12 AWG
• DIN rail mounting: 35 mm
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 42.50 x 34.90 x 61.95 mm
Item no. 65941
EAN: 4043619659418
Country of origin: China
Package: Poly bag
• Terminal block
• DIN rail clip
• Connection terminal
Images
© 2019 by Delock. Copyright www.delock.de
65941
24.05.2019
Delock
Page 2
General
Suitable for conductor gauge: standard
24 - 12 AWG
Mounting type: standard
DIN rail 35 mm
Interface
Connector 1: standard
1 x 10 pin terminal block male
Connector 2: standard
1 x 10 pin terminal block
connector 3: standard
1 x 10 pin terminal block female
connector 4: standard
1 x 10 pin terminal block
Technical characteristics
Storage temperature: standard
-40 °C ~ 105 °C
Physical characteristics
Pitch distance: standard
5.08 mm
Housing material: standard
Plastic
Length: standard
42.50 mm
Width: standard
34.90 mm
Height: standard
61.95 mm
Colour: standard
green
