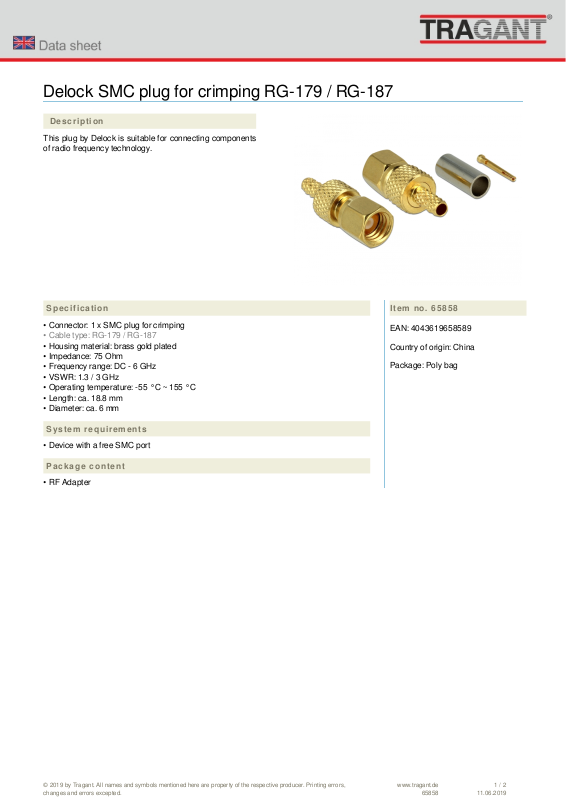

Delock SMC plug for crimping RG-179 / RG-187
Description
This plug by Delock is suitable for connecting components
of radio frequency technology.
Specification
• Connector: 1 x SMC plug for crimping
• Cable type: RG-179 / RG-187
• Housing material: brass gold plated
• Impedance: 75 Ohm
• Frequency range: DC - 6 GHz
• VSWR: 1.3 / 3 GHz
• Operating temperature: -55 °C ~ 155 °C
• Length: ca. 18.8 mm
• Diameter: ca. 6 mm
Item no. 65858
EAN: 4043619658589
Country of origin: China
Package: Poly bag
System requirements
• Device with a free SMC port
Package content
• RF Adapter
© 2019 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
65858
1 / 2
11.06.2019
Page 2
Interface
connector: standard
1 x SMC plug
Technical characteristics
Frequency range: standard
DC - 6 GHz
Impedance: standard
75 Ω
Operating temperature: standard
-55 °C ~ 155 °C
VSWR: standard
1.3 / 3 GHz
Physical characteristics
Housing material: standard
Brass gold plated
Cable type: standard
RG-179
RG-187
Diameter: standard
6 mm
Length: standard
18.8 mm
