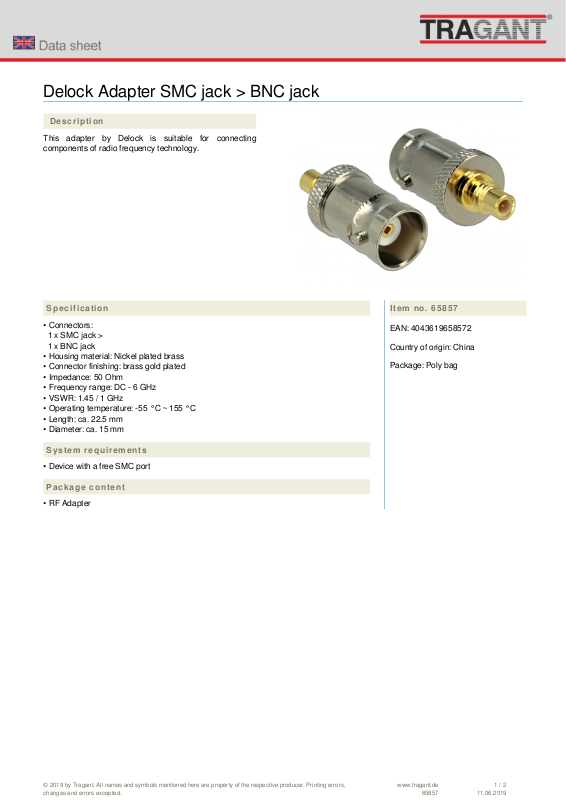

Page 1
Delock Adapter SMC jack > BNC jack
Description
This adapter by Delock is suitable for connecting
components of radio frequency technology.
Specification
• Connectors:
1 x SMC jack >
1 x BNC jack
• Housing material: Nickel plated brass
• Connector finishing: brass gold plated
• Impedance: 50 Ohm
• Frequency range: DC - 6 GHz
• VSWR: 1.45 / 1 GHz
• Operating temperature: -55 °C ~ 155 °C
• Length: ca. 22.5 mm
• Diameter: ca. 15 mm
Item no. 65857
EAN: 4043619658572
Country of origin: China
Package: Poly bag
System requirements
• Device with a free SMC port
Package content
• RF Adapter
© 2019 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
65857
1 / 2
11.06.2019
Page 2
Interface
Connector 1: standard
1 x SMC jack
Connector 2: standard
1 x BNC female
Technical characteristics
Frequency range: standard
DC - 6 GHz
Impedance: standard
50 Ω
Operating temperature: standard
-55 °C ~ 155 °C
VSWR: standard
1.45 / 1 GHz
Physical characteristics
Housing material: standard
Brass gold plated
Diameter: standard
15 mm
Length: standard
22.5 mm
