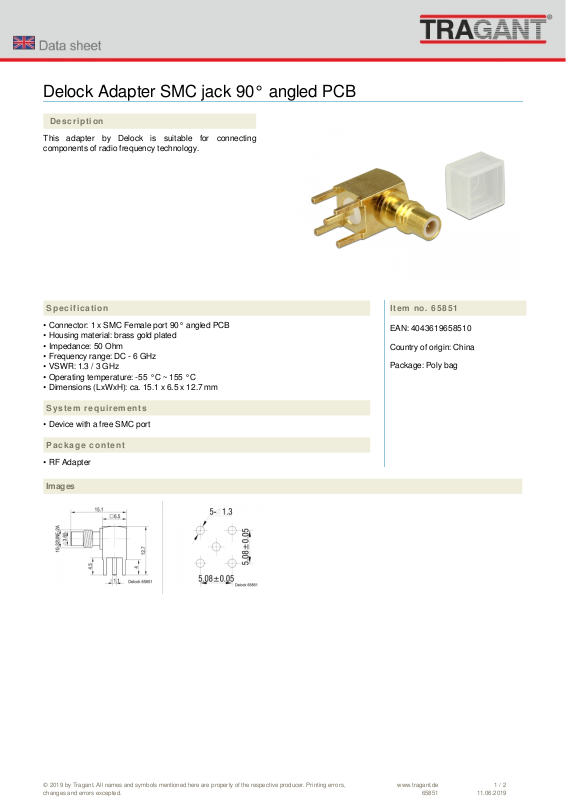

Delock Adapter SMC jack 90° angled PCB
Description
This adapter by Delock is suitable for connecting
components of radio frequency technology.
Specification
• Connector: 1 x SMC Female port 90° angled PCB
• Housing material: brass gold plated
• Impedance: 50 Ohm
• Frequency range: DC - 6 GHz
• VSWR: 1.3 / 3 GHz
• Operating temperature: -55 °C ~ 155 °C
• Dimensions (LxWxH): ca. 15.1 x 6.5 x 12.7 mm
Item no. 65851
EAN: 4043619658510
Country of origin: China
Package: Poly bag
System requirements
• Device with a free SMC port
Package content
• RF Adapter
Images
© 2019 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
65851
1 / 2
11.06.2019
Page 2
Interface
connector: standard
1 x SMC Female port 90° angled PCB
Technical characteristics
Frequency range: standard
DC - 6 GHz
Impedance: standard
50 Ω
Operating temperature: standard
-55 °C ~ 155 °C
VSWR: standard
1.3 / 3 GHz
Physical characteristics
Housing material: standard
Brass gold plated
Length: standard
15,1 mm
Width: standard
6,5 mm
Height: standard
12.7 mm
